Description
Brand - DODGE
Item Number - 037931 DODGE - INS-IP-615R
Category - IMPERIAL Bearing Insert - For Large Bore ISAF Housings (Trident Seal)
Type - Push-Pull Adapter
Bearing Series - 22236
Shaft Size (inch) - 6.9375
Part Name - INS-IP-615R

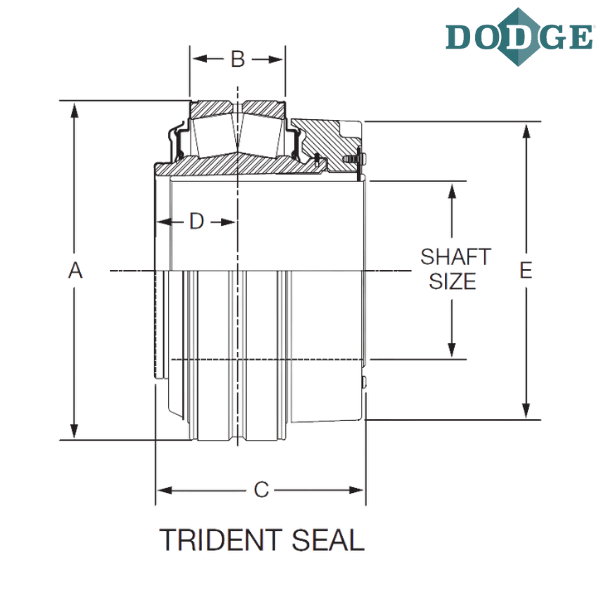

Insert Outer Diameter (A) inch - 12.6
B (inch) - 3.47
Length Through Bore (C) inch - 7.39
D (inch) - 2.86
E (inch) - 11.41
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
INS - Insert
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

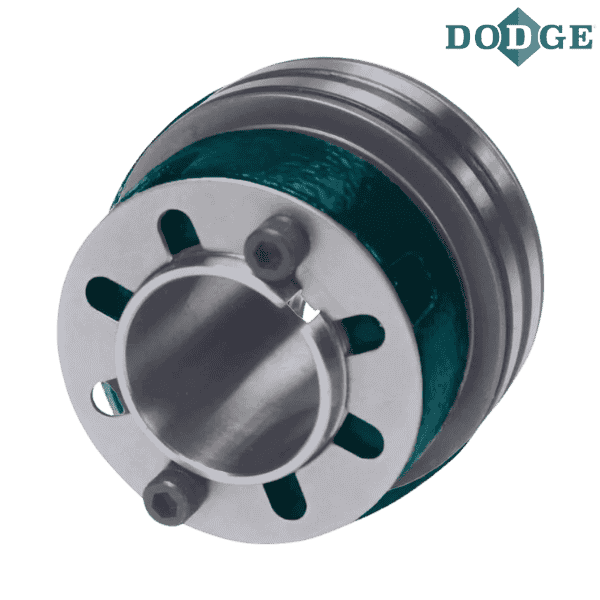

** Images are for representation purposes only
