Description
Brand - DODGE
Item Number - 037648 DODGE - S1U528-TAF-415
Category - TAF Units - Inch (“S-1” Units - Gray Iron)
Shaft Size (inch) - 4.9375
Part Name - S1U528-TAF-415
Approximate Weight (lbs) - 82

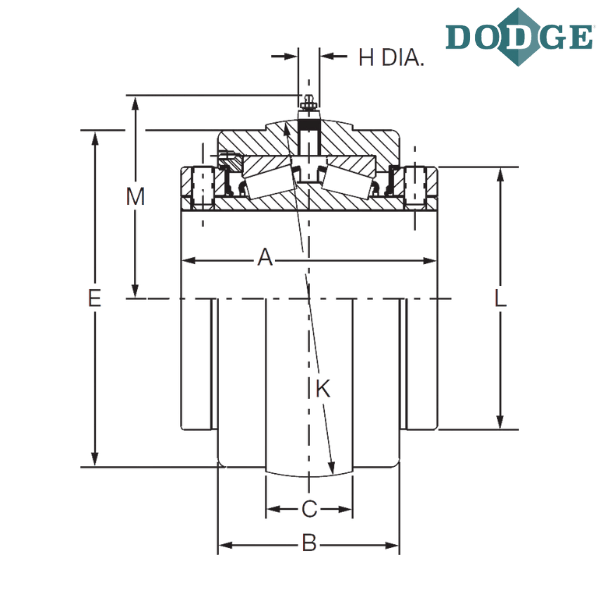

Length Through Bore (A) inch - 7.25
B (inch) - 5.13
C (inch) - 3.13
Insert Outer Diameter (E, Machine Side) inch - 9.56
E (Cast Side) inch - 9.54
H (inch) - 0.94
K ** (inch) - 10.124
L (inch) - 7.45
M (inch) - 6.19
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
S1U - S-1, Unit Cast Iron
** +.0005

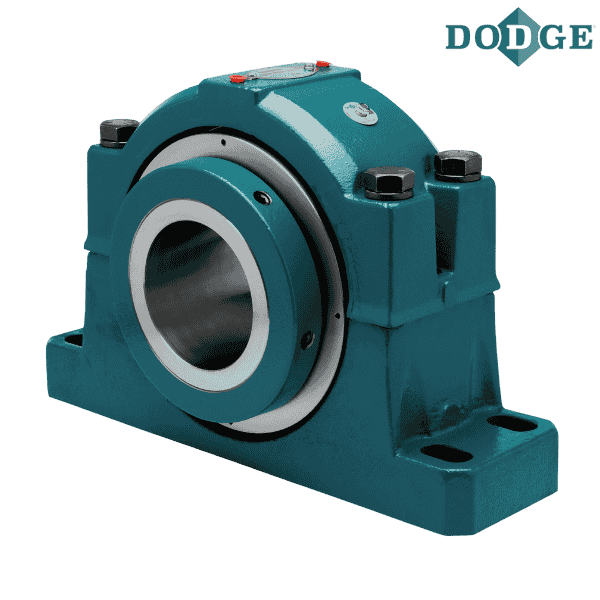

*** Images are for representation purposes only
