Description
Brand - DODGE
Item Number - 037642 DODGE - S1U520-TAF-307
Category - TAF Units - Inch (“S-1” Units - Gray Iron)
Shaft Size (inch) - 3.4375
Part Name - S1U520-TAF-307
Approximate Weight (lbs) - 31

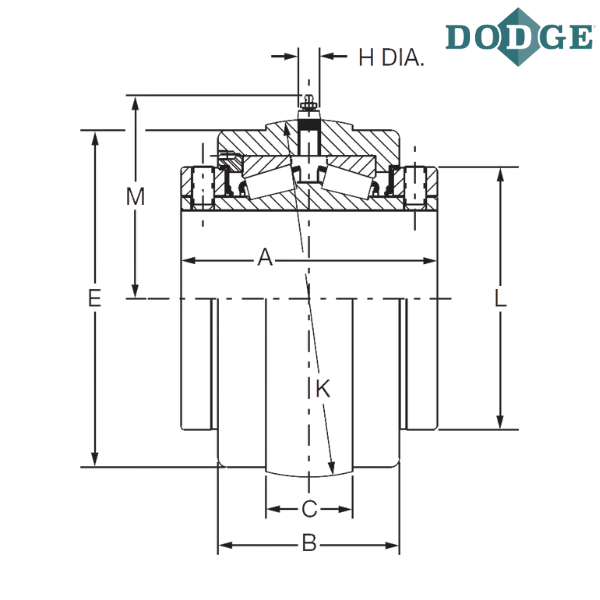

Length Through Bore (A) inch - 5
B (inch) - 3.5
C (inch) - 2.19
Insert Outer Diameter (E, Machine Side) inch - 6.81
E (Cast Side) inch - 6.88
H (inch) - 0.75
K ** (inch) - 7.313
L (inch) - 5.5
M (inch) - 4.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
S1U - S-1, Unit Cast Iron
** +.0005

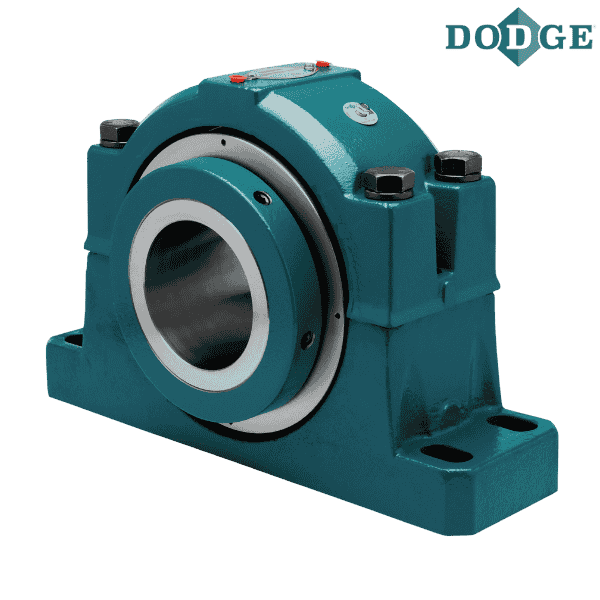

*** Images are for representation purposes only
