Description
Brand - DODGE
Item Number - 037639 DODGE - S1U516-TAF-212
Category - TAF Units - Inch (“S-1” Units - Gray Iron)
Shaft Size (inch) - 2.75
Part Name - S1U516-TAF-212
Approximate Weight (lbs) - 17

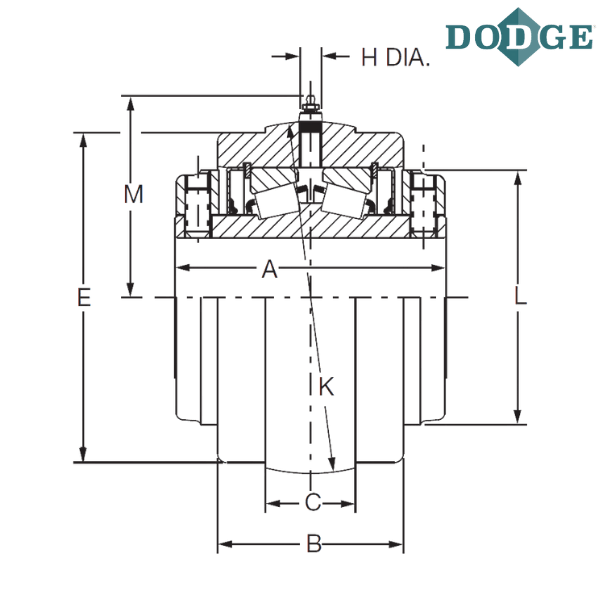

Length Through Bore (A) inch - 4.5
B (inch) - 3
C (inch) - 1.88
Insert Outer Diameter (E, Machine Side) inch - 5.56
E (Cast Side) inch - 5.63
H (inch) - 0.75
K (inch) - 6.001
L (inch) - 4.72
M (inch) - 3.88
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
S1U - S-1, Unit Cast Iron

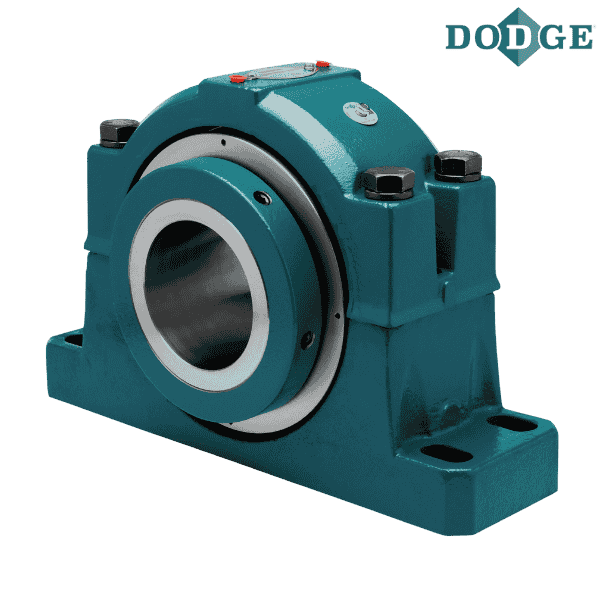

** Images are for representation purposes only
