Description
Brand - DODGE
Item Number - 037636 DODGE - S1U515-TAF-207
Category - TAF Units - Inch (“S-1” Units - Gray Iron)
Shaft Size (inch) - 2.4375
Part Name - S1U515-TAF-207
Approximate Weight (lbs) - 11

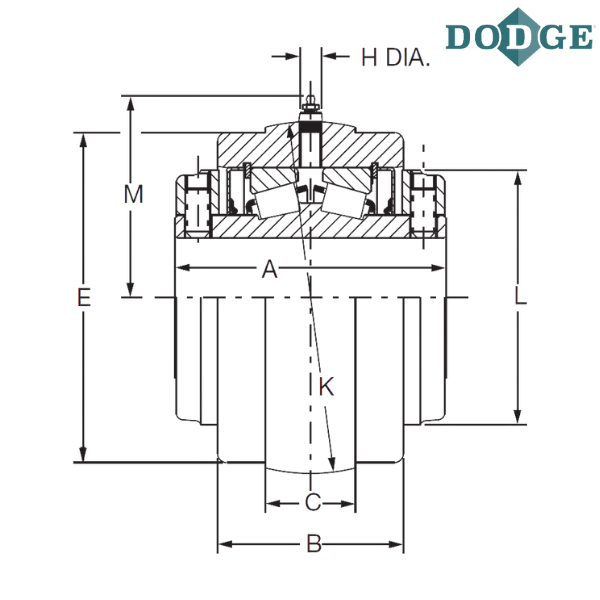

Length Through Bore (A) inch - 4
B (inch) - 2.75
C (inch) - 1.44
Insert Outer Diameter (E, Machine Side) inch - 4.81
E (Cast Side) inch - 4.87
H (inch) - 0.75
K * (inch) - 5.156
L (inch) - 4.06
M (inch) - 3.38
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
S1U - S-1, Unit Cast Iron
* +.000,-.001”

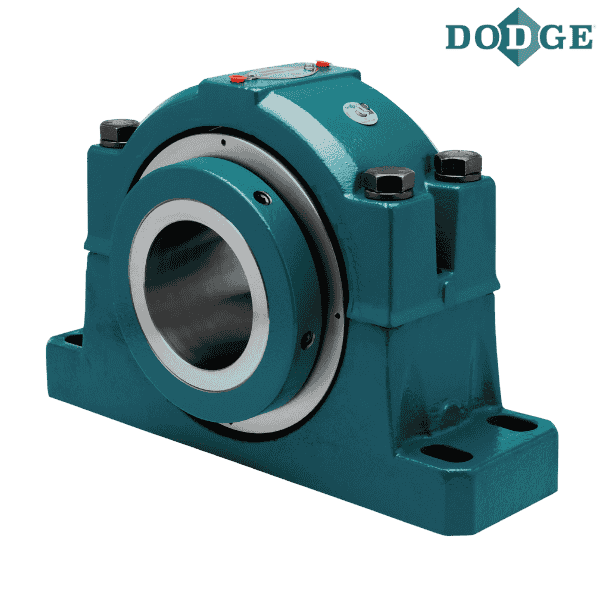

** Images are for representation purposes only
