Description
Brand - DODGE
Item Number - 037635 DODGE - S1U513-TAF-203
Category - TAF Units - Inch (“S-1” Units - Gray Iron)
Shaft Size (inch) - 2.1875
Part Name - S1U513-TAF-203
Approximate Weight (lbs) - 9

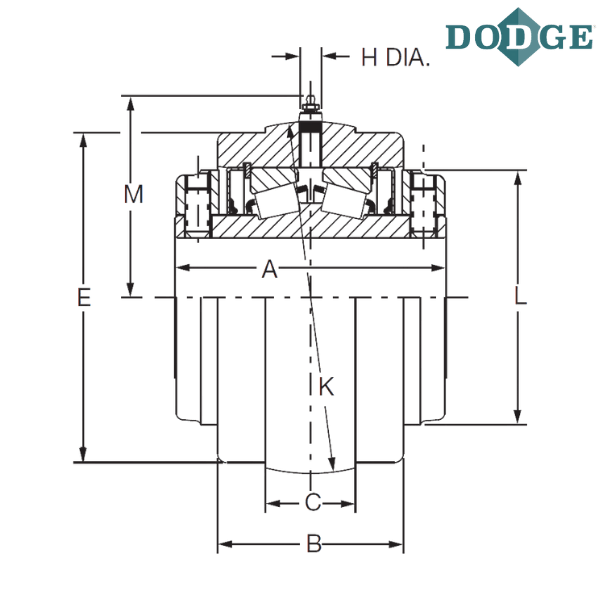

Length Through Bore (A) inch - 3.75
B (inch) - 2.56
C (inch) - 1.56
Insert Outer Diameter (E, Machine Side) inch - 4.5
E (Cast Side) inch - 4.56
H (inch) - 0.75
K * (inch) - 4.94
L (inch) - 3.75
M (inch) - 2.95
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
S1U - S-1, Unit Cast Iron
* +.000,-.001”

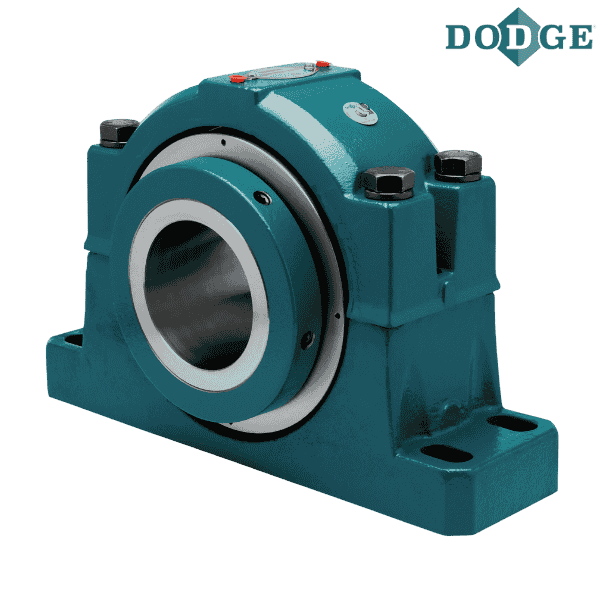

** Images are for representation purposes only
