037631 DODGE - P4B-528-TAF-500-RE

Brand - DODGE
Item Number - 037631 DODGE - P4B-528-TAF-500-RE
Category - 2-Bolt Base TAF Pillow Block - Inch (Gray Iron Expansion)
Shaft Size (inch) - 5
Shaft Size Symbol - 500
SAF Housing Number - 528
Description - P4B-528-TAF-500-R
Housing Only - 037569
Bearing Inner Unit - 037649
Approximate Weight of Pillow Block (lbs) - 180

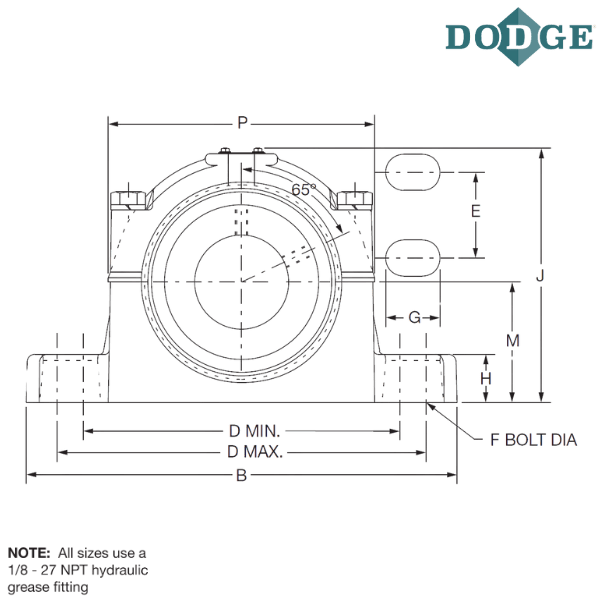

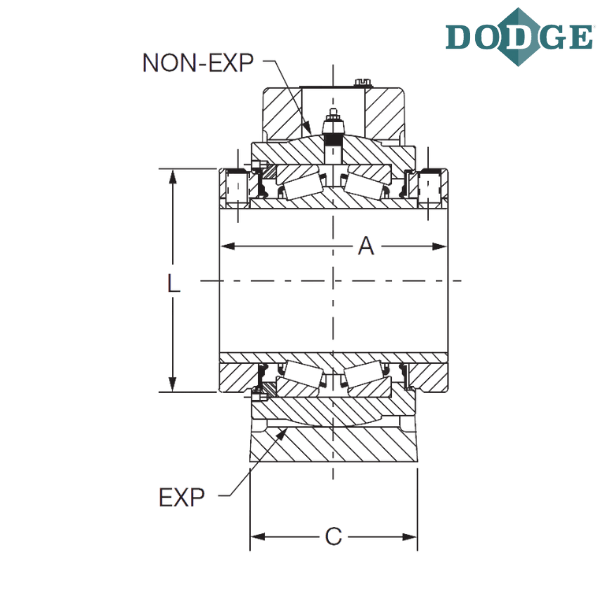

Length Through Bore (A) inch - 7.25
Overall Length (B) inch - 19.7
C (inch) - 5.88
Bolt to Bolt Minimum Distance (D min) inch - 15.63
Bolt to Bolt Maximum Distance (D max) inch - 17.38
E (inch) - 3.38
F-Bolt Diameter (inch) - 1
G (inch) - 2
H (inch) - 2.06
Overall Height (J) inch - 12.58
L (inch) - 7.45
Base to Center Height (M) inch - 6
P (inch) - 13.36
EXP* (inch) - 0.34375
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4-Bolt, Cast Iron
5XX - Housing Series (TAF Only)
R - “XTS” Triple Lip Seal
E - Expansion Type Bearing

* EXP. Total Expansion Divided Equally on Both Sides of Bearing (Expansion Bearing Only)

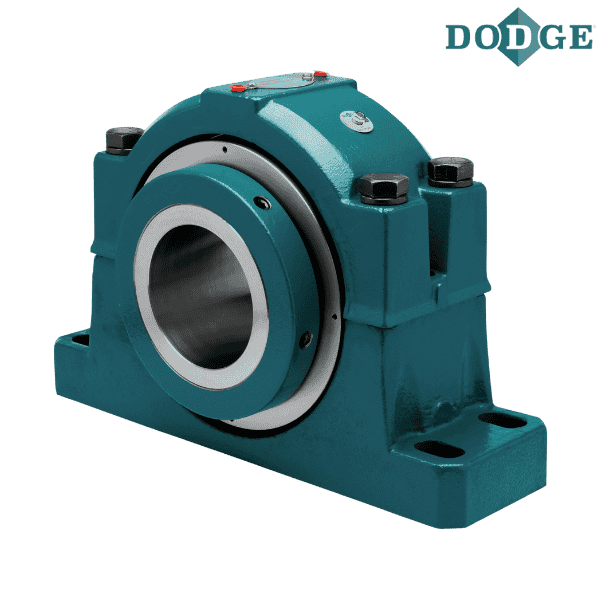

** Images are for representation purposes only
