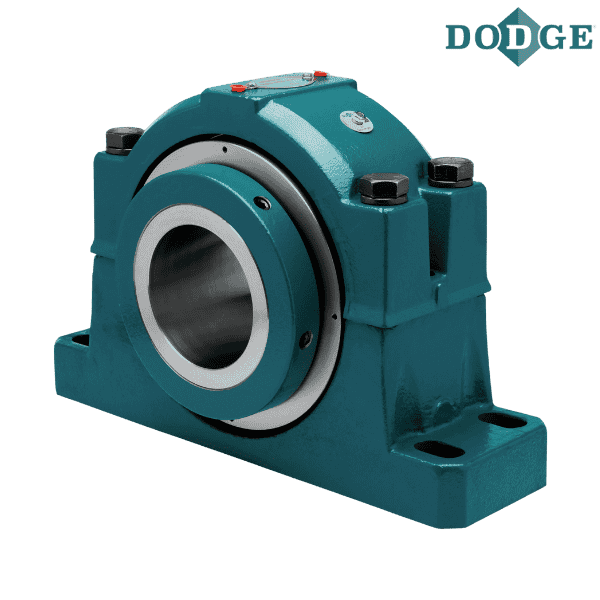

037628 DODGE - P4B-526-TAF-407-RE

Brand - DODGE
Item Number - 037628 DODGE - P4B-526-TAF-407-RE
Category - 2-Bolt Base TAF Pillow Block - Inch (Gray Iron Expansion)
Shaft Size (inch) - 4.4375
Shaft Size Symbol - 407
SAF Housing Number - 526
Description - P4B-526-TAF-407-R
Housing Only - 037568
Bearing Inner Unit - 037646
Approximate Weight of Pillow Block (lbs) - 140

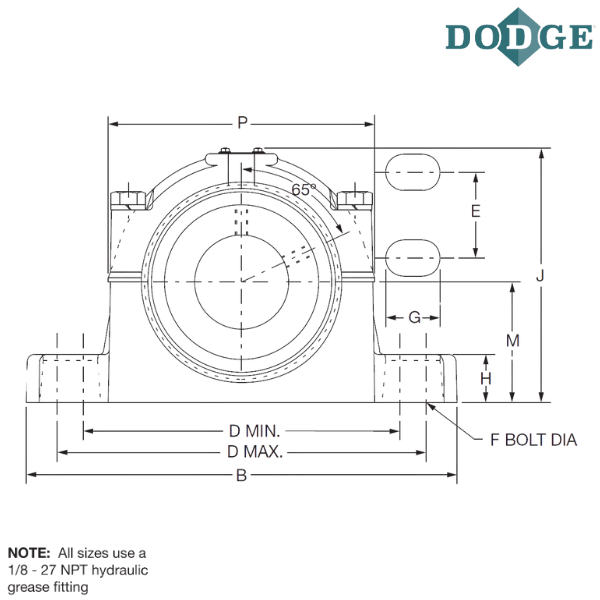

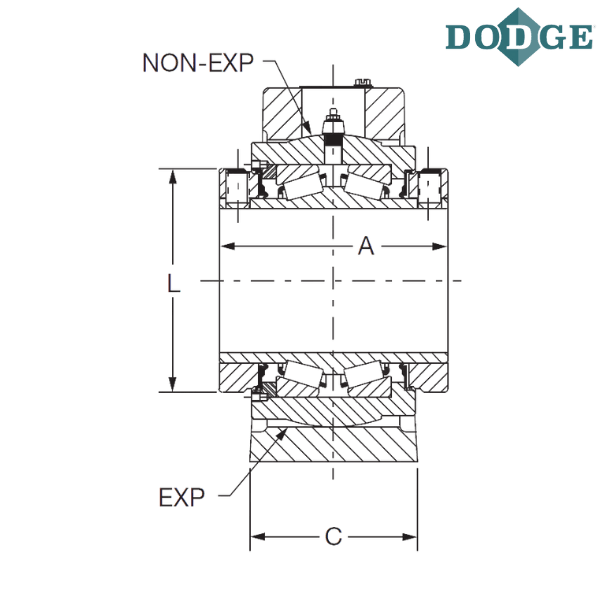

Length Through Bore (A) inch - 6.75
Overall Length (B) inch - 18.38
C (inch) - 5.13
Bolt to Bolt Minimum Distance (D min) inch - 14.5
Bolt to Bolt Maximum Distance (D max) inch - 16
E (inch) - 3.25
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.75
H (inch) - 2.06
Overall Height (J) inch - 11.83
L (inch) - 6.45
Base to Center Height (M) inch - 6
P (inch) - 12.45
EXP* (inch) - 0.34375
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4-Bolt, Cast Iron
5XX - Housing Series (TAF Only)
R - “XTS” Triple Lip Seal
E - Expansion Type Bearing

* EXP. Total Expansion Divided Equally on Both Sides of Bearing (Expansion Bearing Only)

** Images are for representation purposes only
