037622 DODGE - P4B-517-TAF-215-RE

Brand - DODGE
Item Number - 037622 DODGE - P4B-517-TAF-215-RE
Category - 2-Bolt Base TAF Pillow Block - Inch (Gray Iron Expansion)
Shaft Size (inch) - 2.9375
Shaft Size Symbol - 215
SAF Housing Number - 517
Description - P4B-517-TAF-215-R
Housing Only - 037565
Bearing Inner Unit - 037640
Approximate Weight of Pillow Block (lbs) - 45

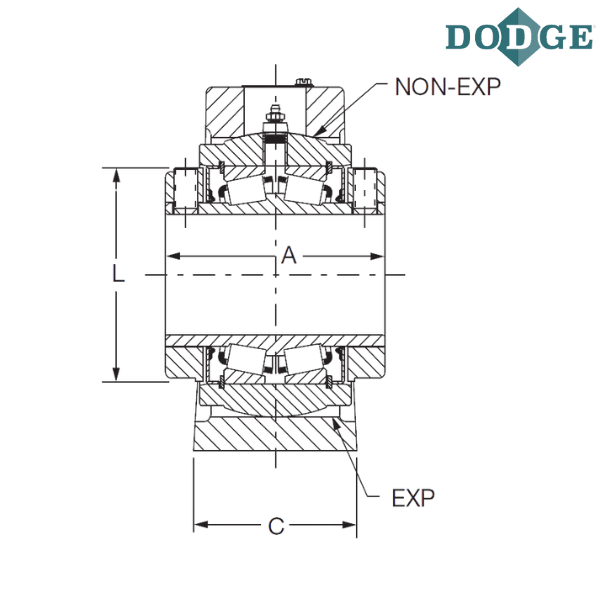

Length Through Bore (A) inch - 4.5

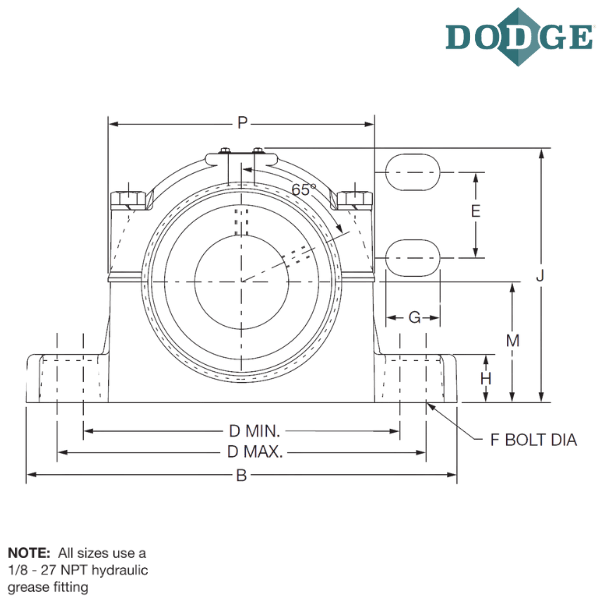

Overall Length (B) inch - 12.59
C (inch) - 3.5
Bolt to Bolt Minimum Distance (D min) inch - 9.88
Bolt to Bolt Maximum Distance (D max) inch - 11
E (inch) - 2.13
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.33
H (inch) - 1.25
Overall Height (J) inch - 7.92
L (inch) - 4.72
Base to Center Height (M) inch - 3.75
P (inch) - 8.31
EXP* (inch) - 0.28125
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4-Bolt, Cast Iron
5XX - Housing Series (TAF Only)
R - “XTS” Triple Lip Seal
E - Expansion Type Bearing

* EXP. Total Expansion Divided Equally on Both Sides of Bearing (Expansion Bearing Only)

** Images are for representation purposes only
