037611 DODGE - P4B-520-TAF-308-R

Brand - DODGE
Item Number - 037611 DODGE - P4B-520-TAF-308-R
Category - 4-Bolt Base TAF Pillow Block - Inch (Gray Iron Non-Expansion)
Shaft Size (inch) - 3.5
Shaft Size Symbol - 308
SAF Housing Number - 520
Description - P4B-520-TAF-308-R
Housing Only - 037551
Bearing Inner Unit - 037643
Approximate Weight of Pillow Block (lbs) - 70

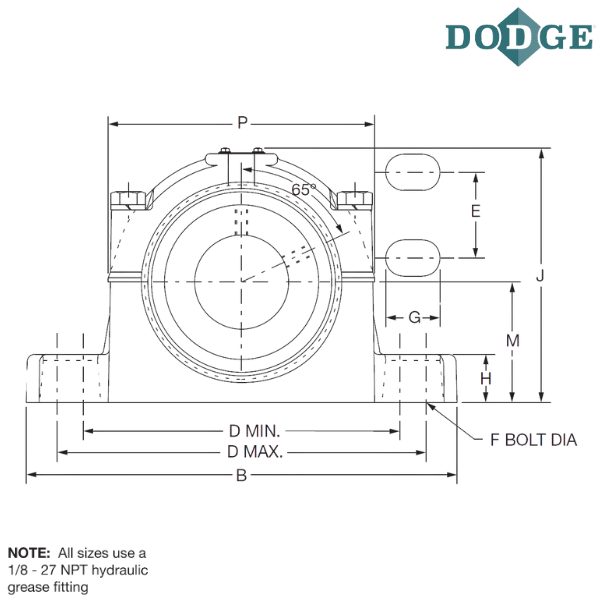

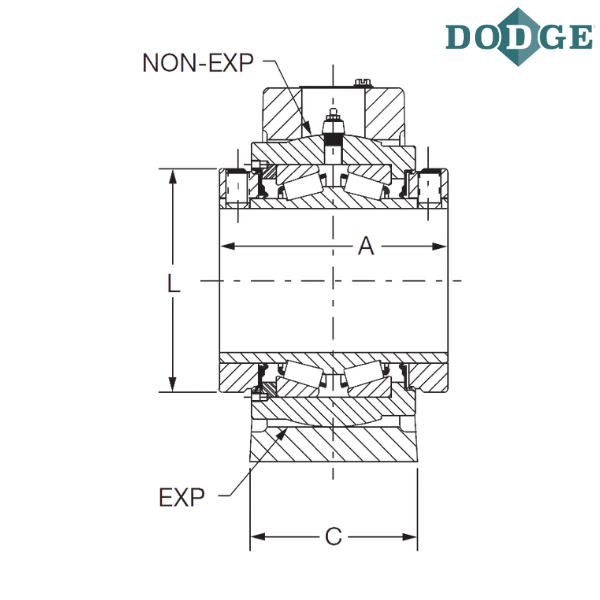

Length Through Bore (A) inch - 5
Overall Length (B) inch - 15.38
C (inch) - 4.34
Bolt to Bolt Minimum Distance (D min) inch - 11.63
Bolt to Bolt Maximum Distance (D max) inch - 13.13
E (inch) - 2.38
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.63
H (inch) - 1.66
Overall Height (J) inch - 9.42
L (inch) - 5.5
Base to Center Height (M) inch - 4.5
P (inch) - 10.09
EXP* (inch) - 0.28125
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4-Bolt, Cast Iron
5XX - Housing Series (TAF Only)
R - “XTS” Triple Lip Seal

* EXP. Total Expansion Divided Equally on Both Sides of Bearing (Expansion Bearing Only)

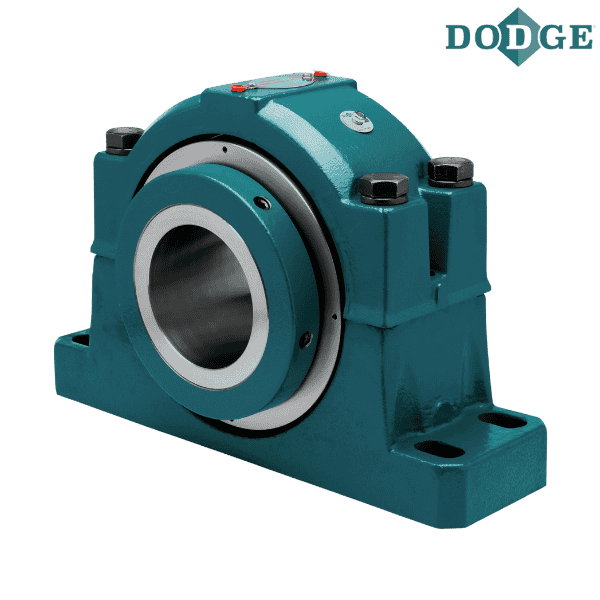

** Images are for representation purposes only
