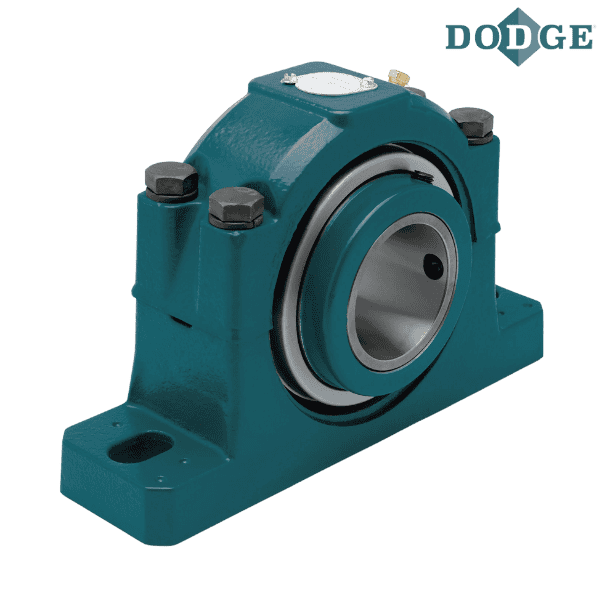

037595 DODGE - P2B-513-TAF-203-RE

Brand - DODGE
Item Number - 037595 DODGE - P2B-513-TAF-203-RE
Category - 2-Bolt Base TAF Pillow Block - Inch (Gray Iron Expansion)
Shaft Size (inch) - 2.1875
Shaft Size Symbol - 203
SAF Housing Number - 513
Description - P2B-513-TAF-203-RE
Housing Only - 037558
Bearing Inner Unit - 037635
Approximate Weight of Pillow Block (lbs) - 25

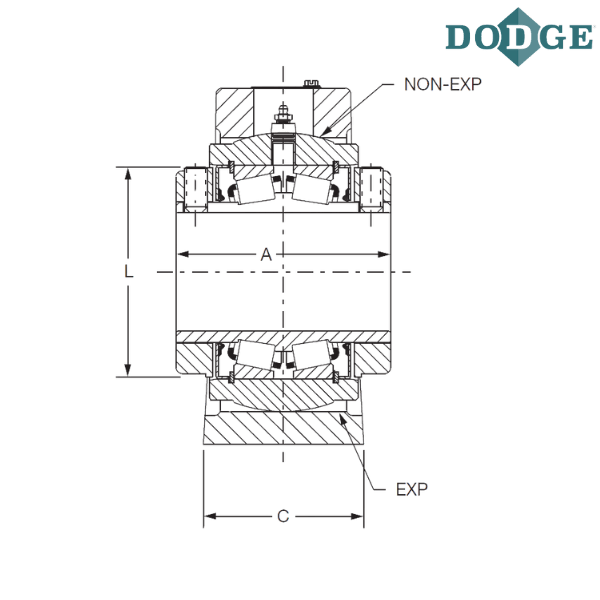

Length Through Bore (A) inch - 3.75

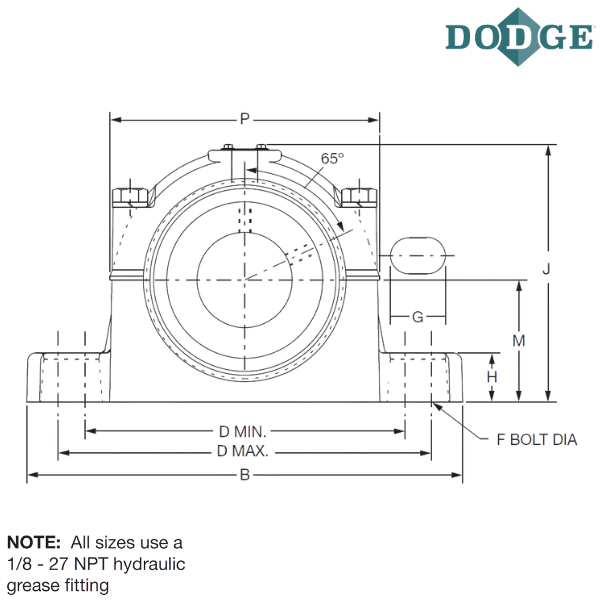

Overall Length (B) inch - 11
C (inch) - 3.25
Bolt to Bolt Minimum Distance (D min) inch - 8.66
Bolt to Bolt Maximum Distance (D max) inch - 9.5
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.44
H (inch) - 1.03
Overall Height (J) inch - 6.52
L (inch) - 3.75
Base to Center Height (M) inch - 3
P (inch) - 6.95
EXP* (inch) - 0.28125
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
5XX - Housing Series (TAF Only)
R - “XTS” Triple Lip Seal
E - Expansion Type Bearing

* EXP. Total Expansion Divided Equally on Both Sides of Bearing (Expansion Bearing Only)

** Images are for representation purposes only
