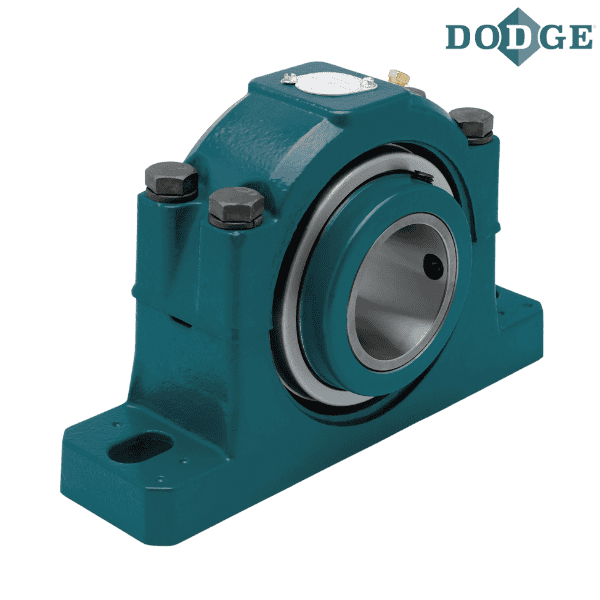

037592 DODGE - P2B-509-TAF-107-RE

Brand - DODGE
Item Number - 037592 DODGE - P2B-509-TAF-107-RE
Category - 2-Bolt Base TAF Pillow Block - Inch (Gray Iron Expansion)
Shaft Size (inch) - 1.4375
Shaft Size Symbol - 107
SAF Housing Number - 509
Description - P2B-509-TAF-107-RE
Housing Only - 037555
Bearing Inner Unit - 037632
Approximate Weight of Pillow Block (lbs) - 12

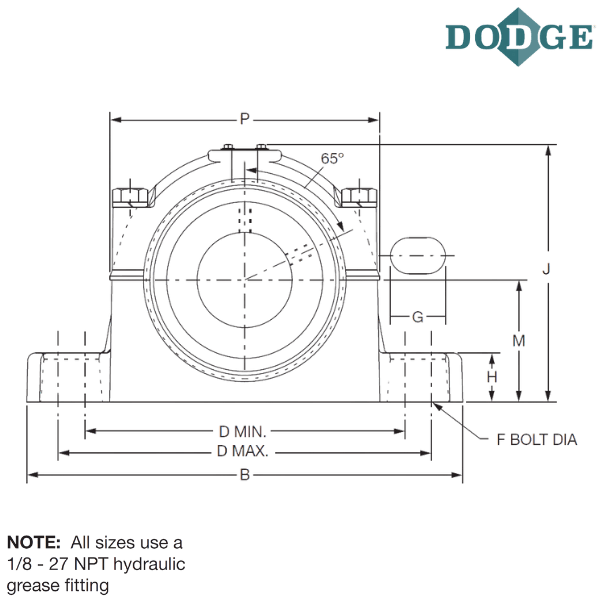

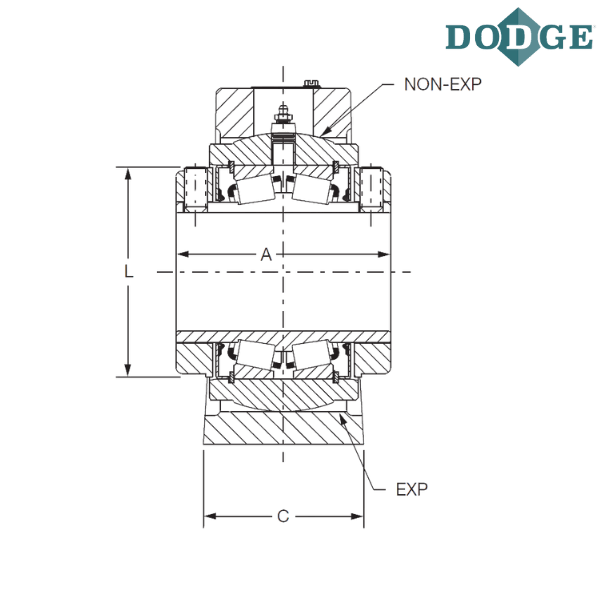

Length Through Bore (A) inch - 3
Overall Length (B) inch - 8.25
C (inch) - 2.19
Bolt to Bolt Minimum Distance (D min) inch - 6.25
Bolt to Bolt Maximum Distance (D max) inch - 7
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.94
H (inch) - 0.88
Overall Height (J) inch - 5.11
L (inch) - 2.75
Base to Center Height (M) inch - 2.25
P (inch) - 5.52
EXP* (inch) - 0.09375
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
5XX - Housing Series (TAF Only)
R - “XTS” Triple Lip Seal
E - Expansion Type Bearing

* EXP. Total Expansion Divided Equally on Both Sides of Bearing (Expansion Bearing Only)

** Images are for representation purposes only
