037582 DODGE - P2B-511-TAF-115-R

Brand - DODGE
Item Number - 037582 DODGE - P2B-511-TAF-115-R
Category - 2-Bolt Base TAF Pillow Block - Inch (Gray Iron Non-Expansion)
Shaft Size (inch) - 1.9375
Shaft Size Symbol - 115
SAF Housing Number - 511
Description - P2B-511-TAF-115-R
Housing Only - 037542
Bearing Inner Unit - 037634
Approximate Weight of Pillow Block (lbs) - 17

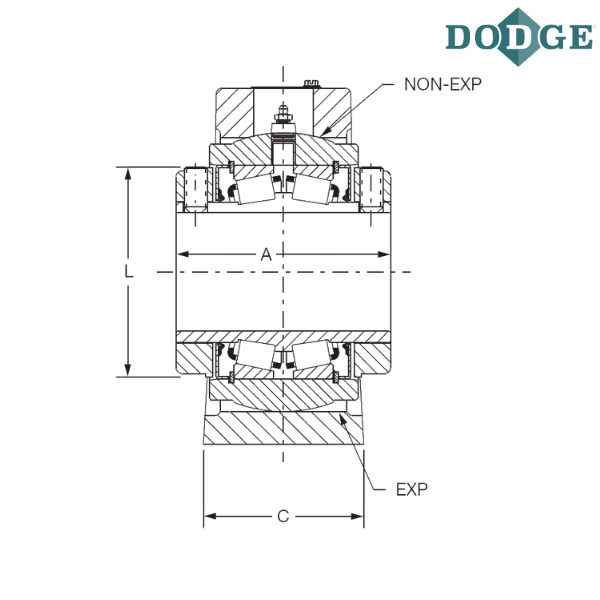

Length Through Bore (A) inch - 3.5

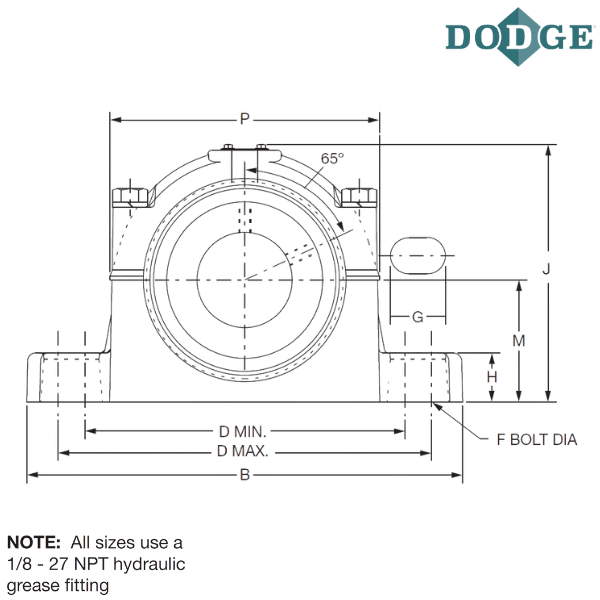

Overall Length (B) inch - 9.63
C (inch) - 2.75
Bolt to Bolt Minimum Distance (D min) inch - 7.38
Bolt to Bolt Maximum Distance (D max) inch - 8.25
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.2
H (inch) - 1.03
Overall Height (J) inch - 6.14
L (inch) - 3.44
Base to Center Height (M) inch - 2.75
P (inch) - 6.36
EXP* (inch) - 0.28125
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
5XX - Housing Series (TAF Only)
R - “XTS” Triple Lip Seal

* EXP. Total Expansion Divided Equally on Both Sides of Bearing (Expansion Bearing Only)

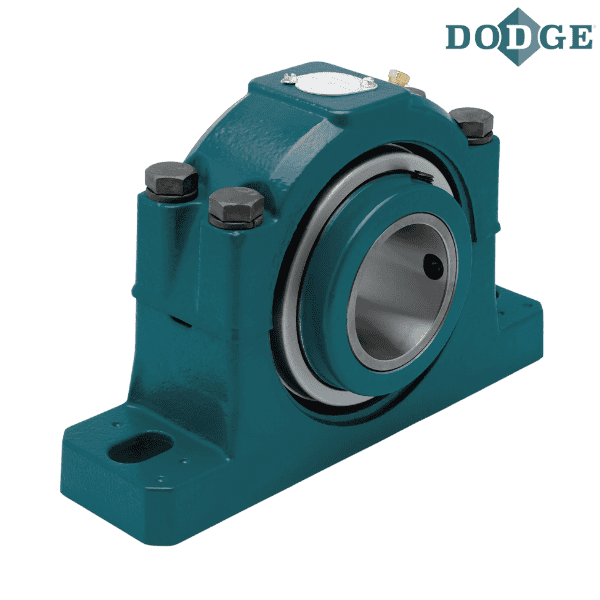

** Images are for representation purposes only
