Description
Brand - DODGE
Item Number - 037026 DODGE - F4B-BAP-415
Category - Sleeve Bearings - Plate Type Babbitted Flange Bearing
Shaft Size (inch) - 4.9375
Description - F4B-BAP-415
Weight (lbs) - 140
Length Through Bore (A) inch - 10
Overall Length (B) inch - 14
C (inch) - 8.5
Bolt Center to Center Length (D) inch - 11.5
F-Bolt Number - 6
F-Bolt Diameter (inch) - 1
H (inch) - 1.375
K (inch) - 4.25
Grease Cups (Pipe Tap) inch - 0.5
Grease Cups Size - 4
Notes :
F4B - Flange, 4 Bolt
BAP - Babbitted Plate
415 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

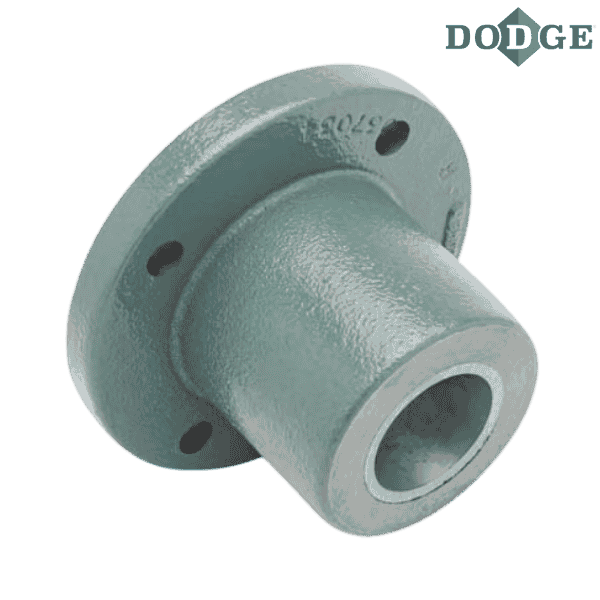

** Images are for representation purposes only
