037024 DODGE - F4B-BAP-407

Brand - DODGE
Item Number - 037024 DODGE - F4B-BAP-407
Category - Sleeve Bearings - Plate Type Babbitted Flange Bearing
Shaft Size (inch) - 4.4375
Description - F4B-BAP-407
Weight (lbs) - 103

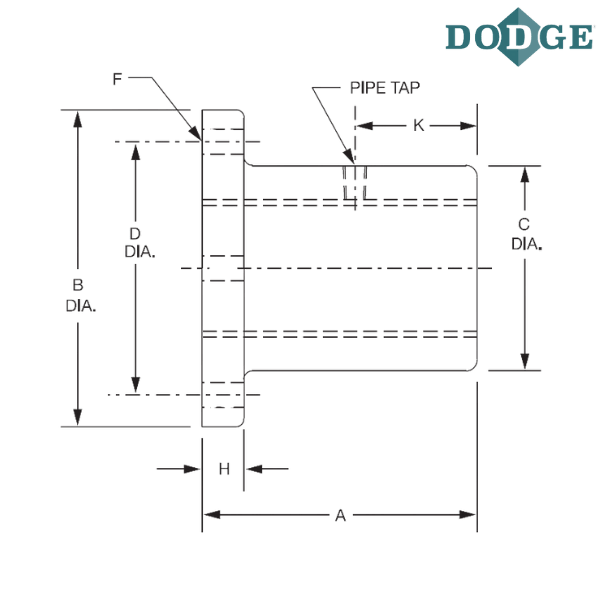

Length Through Bore (A) inch - 9
Overall Length (B) inch - 12.625
C (inch) - 7.75
Bolt Center to Center Length (D) inch - 10.5
F-Bolt Number - 6
F-Bolt Diameter (inch) - 0.875
H (inch) - 1.25
K (inch) - 3.75
Grease Cups (Pipe Tap) inch - 0.5
Grease Cups Size - 4

Notes :
F4B - Flange, 4 Bolt
BAP - Babbitted Plate
407 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
