037022 DODGE - F4B-BAP-315

Brand - DODGE
Item Number - 037022 DODGE - F4B-BAP-315

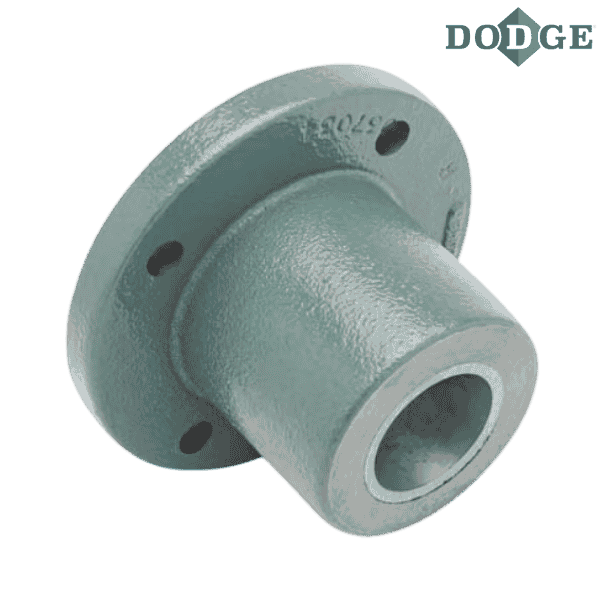

Category - Sleeve Bearings - Plate Type Babbitted Flange Bearing
Shaft Size (inch) - 3.9375
Description - F4B-BAP-315
Weight (lbs) - 70

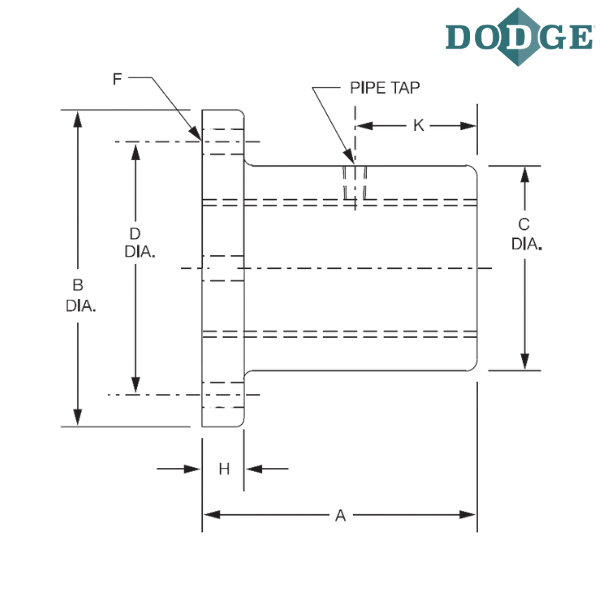

Length Through Bore (A) inch - 8
Overall Length (B) inch - 11.125
C (inch) - 6.875
Bolt Center to Center Length (D) inch - 9.25
F-Bolt Number - 6
F-Bolt Diameter (inch) - 0.75
H (inch) - 1.125
K (inch) - 3.25
Grease Cups (Pipe Tap) inch - 0.5
Grease Cups Size - 4

Notes :
F4B - Flange, 4 Bolt
BAP - Babbitted Plate
315 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
