037020 DODGE - F4B-BAP-307

Brand - DODGE
Item Number - 037020 DODGE - F4B-BAP-307
Category - Sleeve Bearings - Plate Type Babbitted Flange Bearing
Shaft Size (inch) - 3.4375
Description - F4B-BAP-307
Weight (lbs) - 53

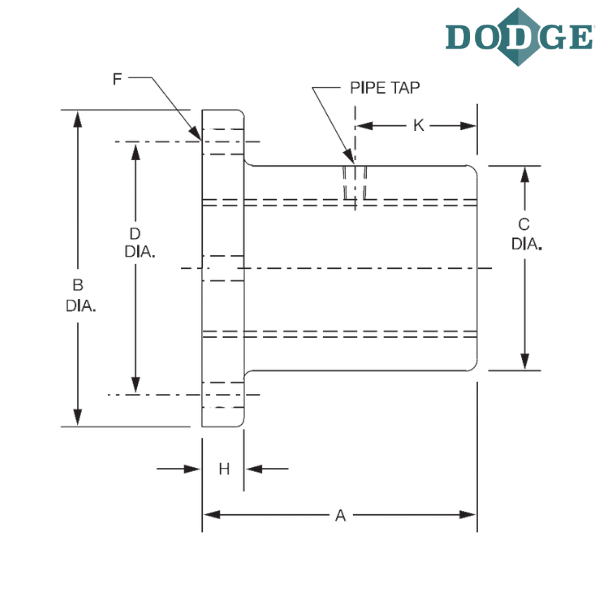

Length Through Bore (A) inch - 7
Overall Length (B) inch - 10.375
C (inch) - 6.25
Bolt Center to Center Length (D) inch - 8.5
F-Bolt Number - 6
F-Bolt Diameter (inch) - 0.75
H (inch) - 1
K (inch) - 2.75
Grease Cups (Pipe Tap) inch - 0.5
Grease Cups Size - 3

Notes :
F4B - Flange, 4 Bolt
BAP - Babbitted Plate
307 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

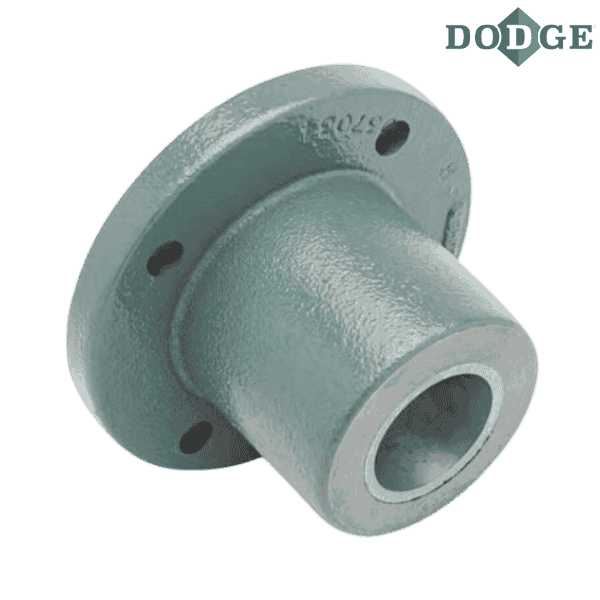

** Images are for representation purposes only
