037006 DODGE - F4B-BAP-203

Brand - DODGE
Item Number - 037006 DODGE - F4B-BAP-203

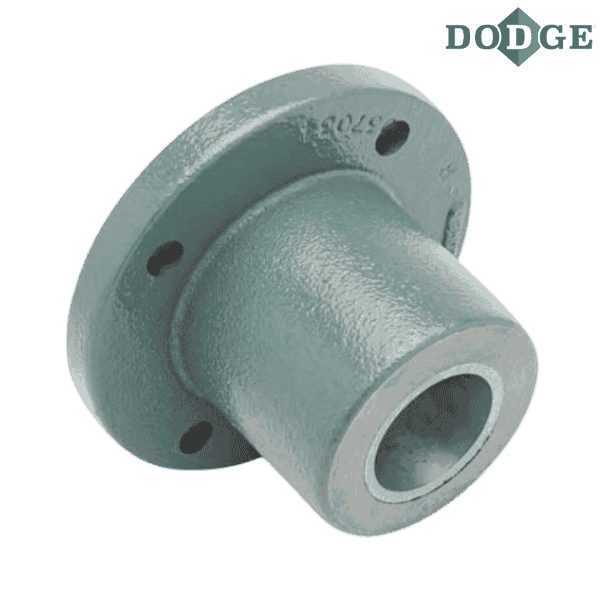

Category - Sleeve Bearings - Plate Type Babbitted Flange Bearing
Shaft Size (inch) - 2.1875
Description - F4B-BAP-203
Weight (lbs) - 17

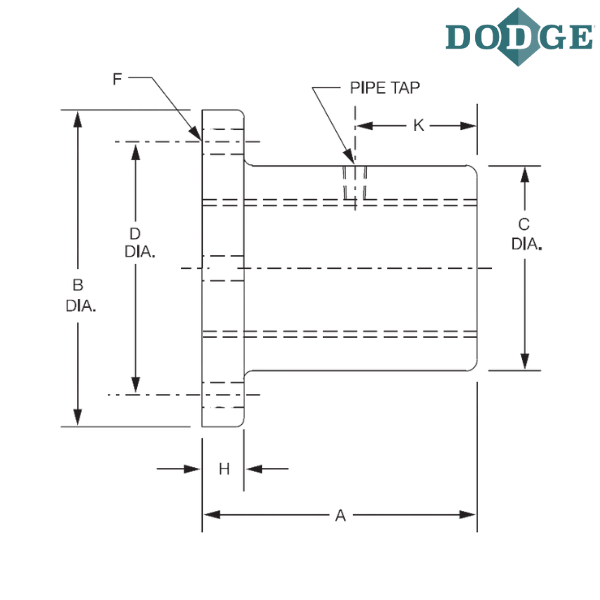

Length Through Bore (A) inch - 4.5
Overall Length (B) inch - 7.5
C (inch) - 4
Bolt Center to Center Length (D) inch - 5.75
F-Bolt Number - 4
F-Bolt Diameter (inch) - 0.625
H (inch) - 0.75
K (inch) - 1.875
Grease Cups (Pipe Tap) inch - 0.375
Grease Cups Size - 2

Notes :
F4B - Flange, 4 Bolt
BAP - Babbitted Plate
203 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
