037001 DODGE - F4B-BAP-015

Brand - DODGE
Item Number - 037001 DODGE - F4B-BAP-015

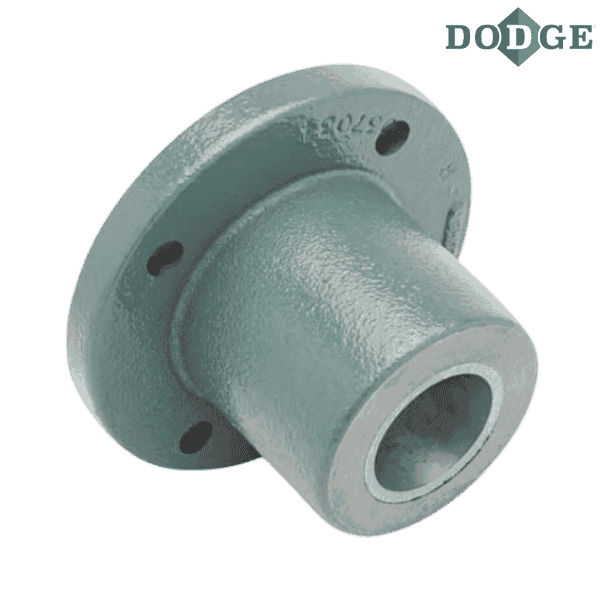

Category - Sleeve Bearings - Plate Type Babbitted Flange Bearing
Shaft Size (inch) - 0.9375
Description - F4B-BAP-015
Weight (lbs) - 2

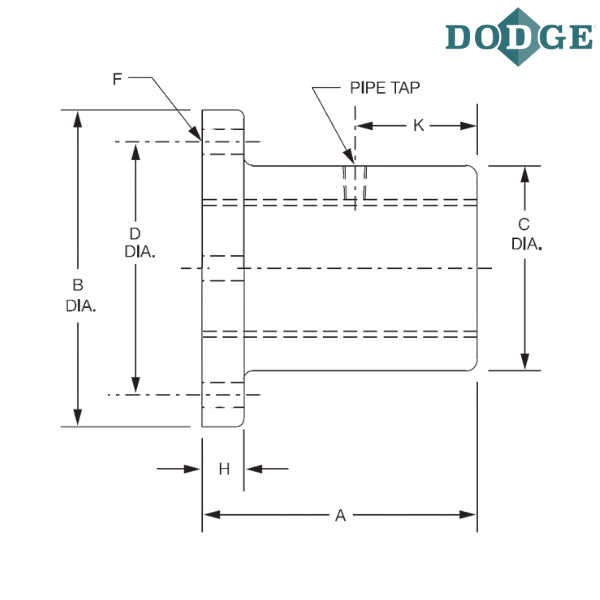

Length Through Bore (A) inch - 2
Overall Length (B) inch - 4
C (inch) - 2
Bolt Center to Center Length (D) inch - 3
F-Bolt Number - 4
F-Bolt Diameter (inch) - 0.375
H (inch) - 0.375
K (inch) - 0.75
Grease Cups (Pipe Tap) inch - 0.125
Grease Cups Size - 0

Notes :
F4B - Flange, 4 Bolt
BAP - Babbitted Plate
015 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
