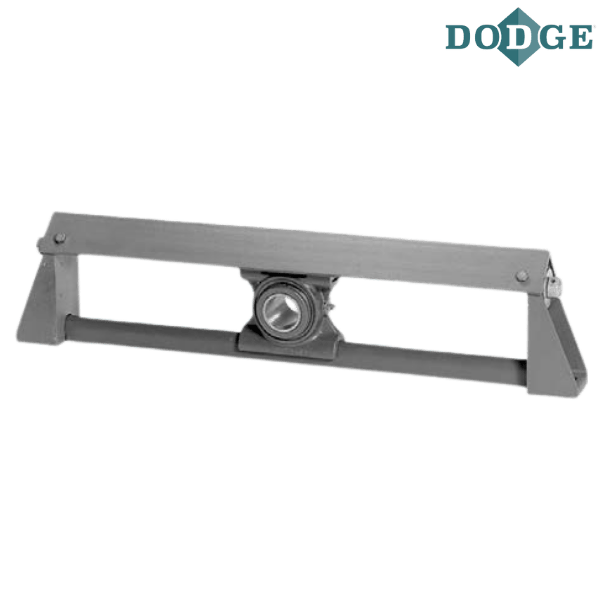

036366 DODGE - TP-60X18-TUFR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 036366 DODGE - TP-60X18-TUFR
Category - Top Angle Protected Screw Take-Up Frame
Description - TP-60X18-TUFR
Frame Size - TP60
Nominal Travel (inch) - 18
Weight (lbs) - 92

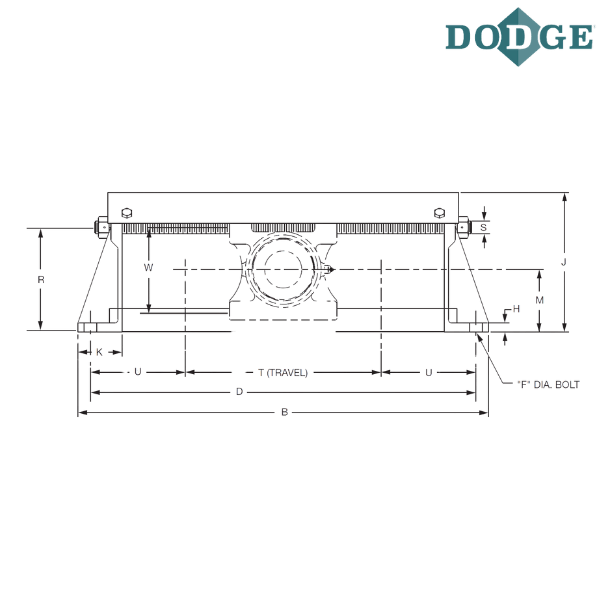

Overall Length (B) inch - 44.5

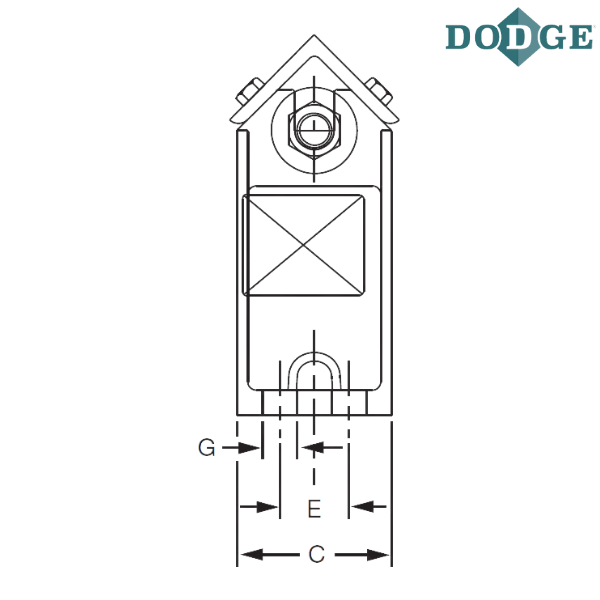

Base Width (C) inch - 5.5
Bolt Center-to-Center Length of F-Bolt (D) inch - 42
Bolt Center-to-Center Width (E) inch - 2.5
F-Bolt Diameter (inch) - 0.75
G (inch) - 1
H (inch) - 0.75
J (inch) - 14.25
K (inch) - 4.5
Base to Center Height (M) inch - 7
R (inch) - 11.34375
S Screw Diameter (inch) - 1.25
T (inch) - 22.5
U (inch) - 9.625
W (inch) - 8.90625

Notes :
TP - Top Angle Take-Up Frame
60 - Frame Size Designation
18 - Inches of Travel
TUFR - Take-Up Frame

** Images are for representation purposes only
