Description
Brand - DODGE
Item Number - 036361 DODGE - TP-40X24-TUFR

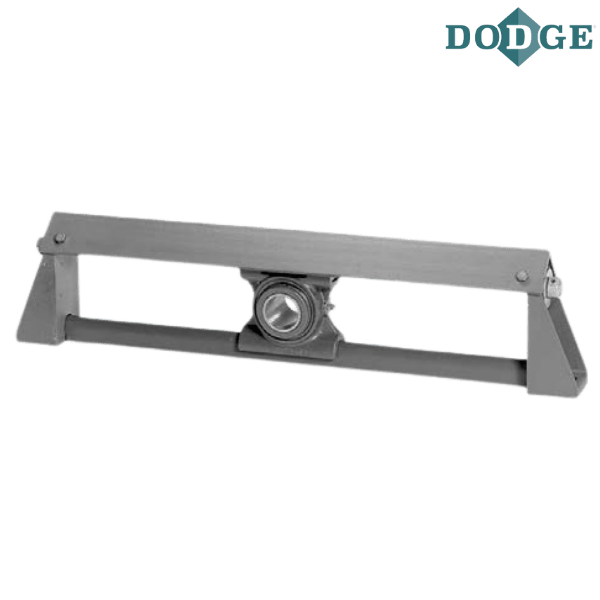

Category - Top Angle Protected Screw Take-Up Frame
Description - TP-40X24-TUFR
Frame Size - TP40
Nominal Travel (inch) - 24
Weight (lbs) - 66
Overall Length (B) inch - 44.5

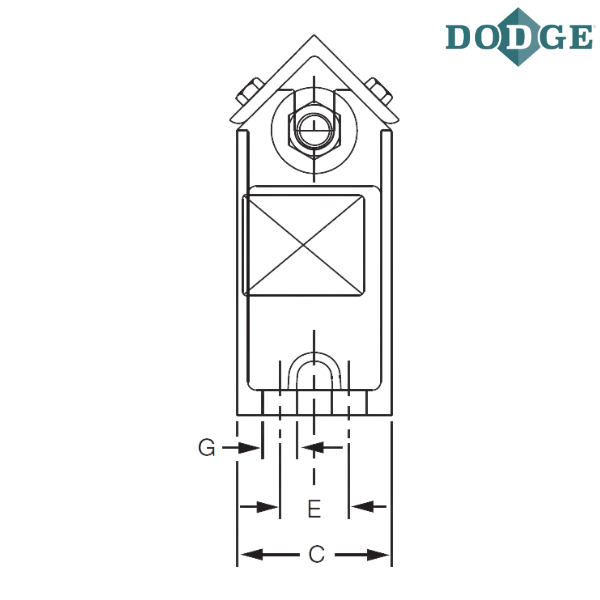

Base Width (C) inch - 4.5
Bolt Center-to-Center Length of F-Bolt (D) inch - 42.5
Bolt Center-to-Center Width (E) inch - 2
F-Bolt Diameter (inch) - 0.625
G (inch) - 1
H (inch) - 0.75
J (inch) - 11.0625
K (inch) - 3.5
Base to Center Height (M) inch - 4.9375
R (inch) - 8.375
S Screw Diameter (inch) - 1
T (inch) - 27.5
U (inch) - 7.5
W (inch) - 7.18750
Notes :
TP - Top Angle Take-Up Frame
40 - Frame Size Designation
24 - Inches of Travel
TUFR - Take-Up Frame
** Images are for representation purposes only
