Description
Brand - DODGE

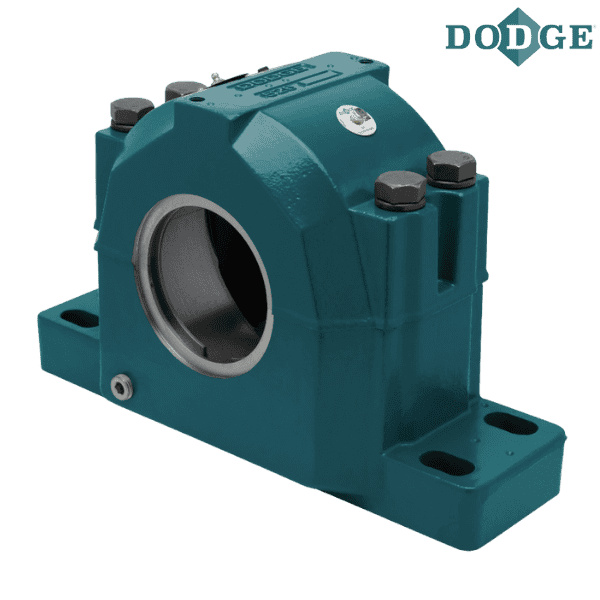

Item Number - 035787 DODGE - P4B524-USAF-403LERAH
Category - USAF 500 Air Handling Pillow Blocks with LER Seals

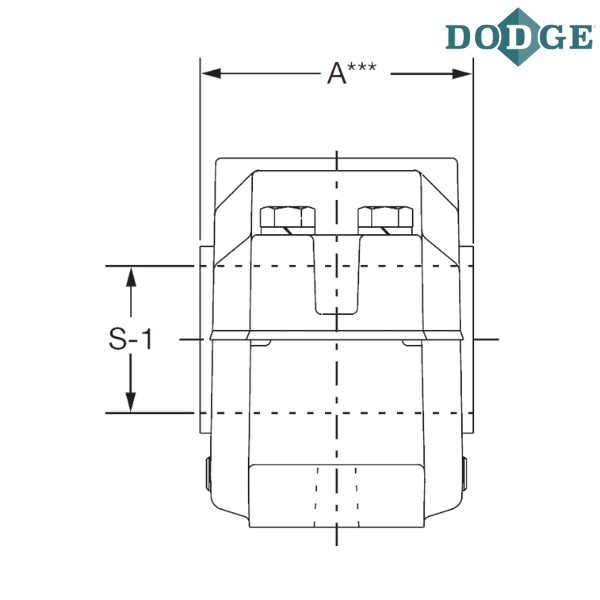

Shaft Diameter (S-1) inch - 4.1875
Description - P4B524-USAF-403LERAH
Housing W/ Stab Ring Item Number - 044202 DODGE - H4S-524-USAF
Bearing Item Number - 422990 DODGE - BRG22224KC3
Dynamic Capacity (C) lbf - 143000
Maximum RPM (Grease) - 1900
SNW Item Number - 046430 DODGE - H3124-SNW-403
LER Seal Item Number ** - 042525 DODGE - 52LER403
End Cover Item Number - 040710 DODGE - EC52
Notes :
P4B - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
403 - 4-3/16”
LER - Metal Labyrinth
AH - Air Handling
H4S - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** LER seals are made from Aluminum
*** Images are for representation purposes only
