Description
Brand - DODGE
Item Number - 035772 DODGE - P2B518-USAF-303LERAH
Category - USAF 500 Air Handling Pillow Blocks with LER Seals
Shaft Diameter (S-1) inch - 3.1875

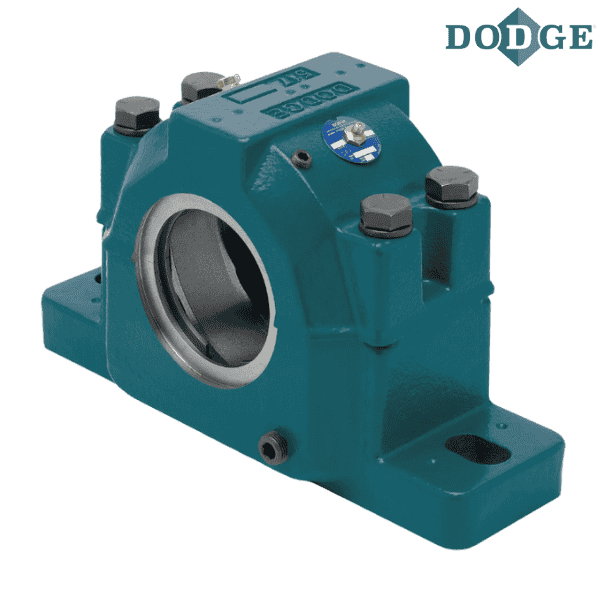

Description - P2B518-USAF-303LERAH
Housing W/ Stab Ring Item Number - 044199 DODGE - H2S-518-USAF
Bearing Item Number - 422987 DODGE - BRG22218KC3
Dynamic Capacity (C) lbf - 78000
Maximum RPM (Grease) - 2600
SNW Item Number - 046360 DODGE - H318-SNW-303
LER Seal Item Number ** - 042520 DODGE - 34LER303
End Cover Item Number - 040707 DODGE - EC34
Notes :
P2B - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
303 - 3-3/16”
LER - Metal Labyrinth
AH - Air Handling
H2S - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** LER seals are made from Aluminum
*** Images are for representation purposes only
