Description
Brand - DODGE
Item Number - 035771 DODGE - P2B517-USAF-300LERAH
Category - USAF 500 Air Handling Pillow Blocks with LER Seals
Shaft Diameter (S-1) inch - 3
Description - P2B517-USAF-300LERAH
Housing W/ Stab Ring Item Number - 044010 DODGE - H2S-517-USAF
Bearing Item Number - 422986 DODGE - BRG22217KC3
Dynamic Capacity (C) lbf - 68000
Maximum RPM (Grease) - 3000
SNW Item Number - 046359 DODGE - H317-SNW-300
LER Seal Item Number ** - 042519 DODGE - 28LER300
End Cover Item Number - 040706 DODGE - EC28
Notes :
P2B - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
300 - 3”
LER - Metal Labyrinth
AH - Air Handling
H2S - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** LER seals are made from Aluminum

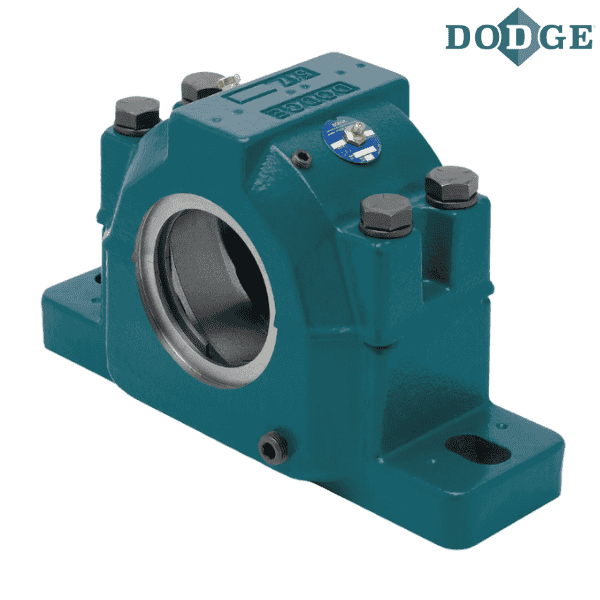

*** Images are for representation purposes only
