Description
Brand - DODGE

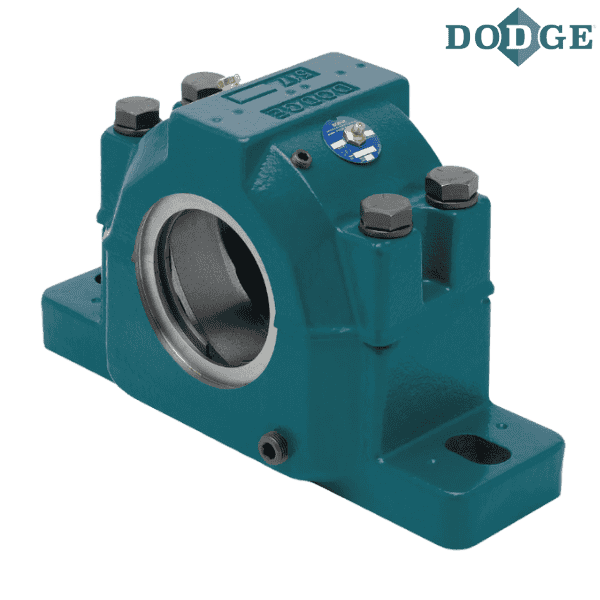

Item Number - 035768 DODGE - P2B516-USAF-211LERAH
Category - USAF 500 Air Handling Pillow Blocks with LER Seals
Shaft Diameter (S-1) inch - 2.6875
Description - P2B516-USAF-211LERAH
Housing W/ Stab Ring Item Number - 044198 DODGE - H2S-516-USAF
Bearing Item Number - 422985 DODGE - BRG22216KC3
Dynamic Capacity (C) lbf - 56000
Maximum RPM (Grease) - 3200
SNW Item Number - 046356 DODGE - H316-SNW-211
LER Seal Item Number ** - 042516 DODGE - 24LER211
End Cover Item Number - 040705 DODGE - EC24
Notes :
P2B - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
211 - 2-11/16”
LER - Metal Labyrinth
AH - Air Handling
H2S - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** LER seals are made from Aluminum
*** Images are for representation purposes only
