Description
Brand - DODGE

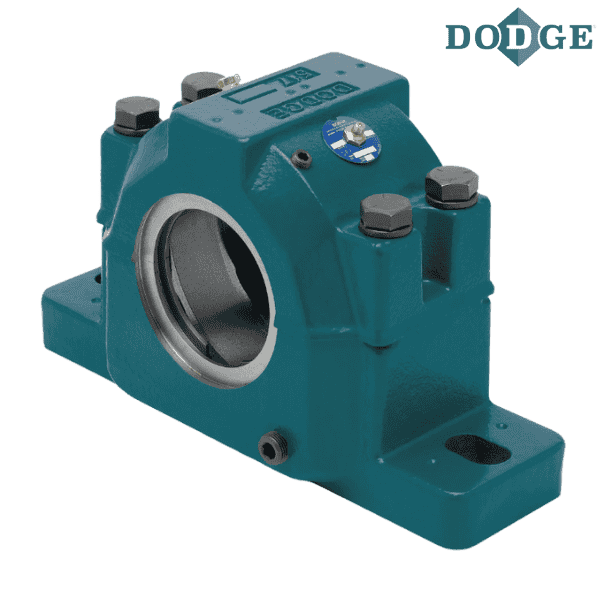

Item Number - 035764 DODGE - P2B511-USAF-115LERAH
Category - USAF 500 Air Handling Pillow Blocks with LER Seals
Shaft Diameter (S-1) inch - 1.9375
Description - P2B511-USAF-115LERAH
Housing W/ Stab Ring Item Number - 043997 DODGE - H2S-511-USAF
Bearing Item Number - 422982 DODGE - BRG22211KC3
Dynamic Capacity (C) lbf - 31500
Maximum RPM (Grease) - 4500
SNW Item Number - 046352 DODGE - H311-SNW-115
LER Seal Item Number ** - 042512 DODGE - 12LER115
End Cover Item Number - 040702 DODGE - EC12
Notes :
P2B - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
115 - 1-15/16”
LER - Metal Labyrinth
AH - Air Handling
H2S - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** LER seals are made from Aluminum
*** Images are for representation purposes only
