Description
Brand - DODGE
Item Number - 035762 DODGE - P2B509-USAF-107LERAH
Category - USAF 500 Air Handling Pillow Blocks with LER Seals

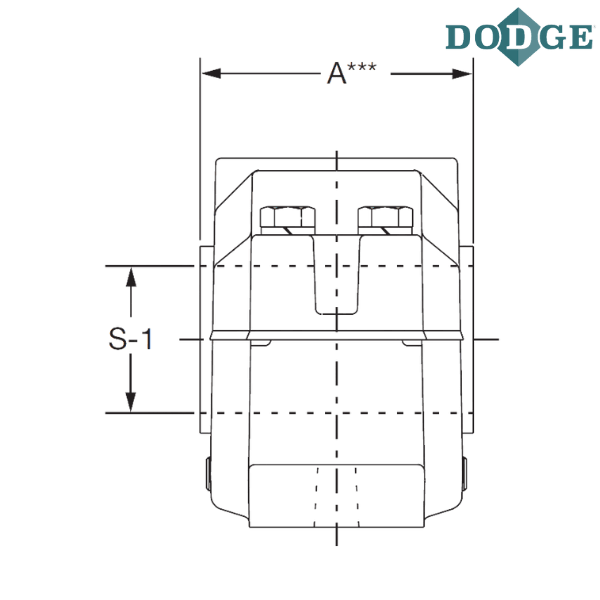

Shaft Diameter (S-1) inch - 1.4375
Description - P2B509-USAF-107LERAH
Housing W/ Stab Ring Item Number - 043995 DODGE - H2S-509-USAF
Bearing Item Number - 422980 DODGE - BRG22209KC3
Dynamic Capacity (C) lbf - 24500
Maximum RPM (Grease) - 5600
SNW Item Number - 046350 DODGE - H309-SNW-107
LER Seal Item Number ** - 042193 DODGE - 08LER107
End Cover Item Number - 040700 DODGE - EC08
Notes :

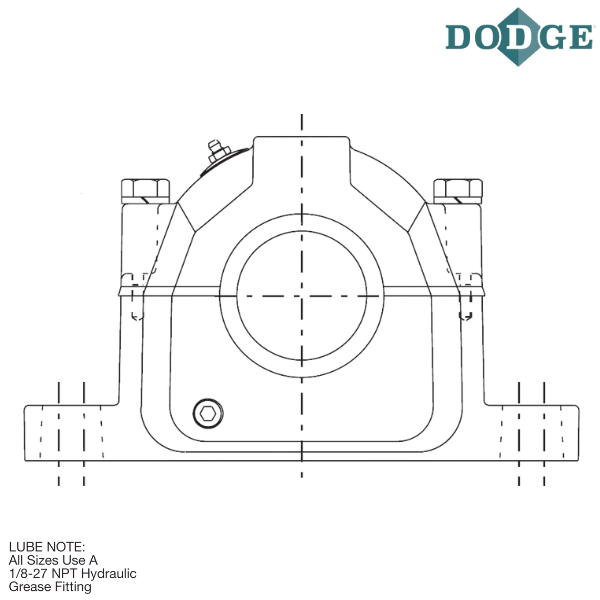

P2B - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
107 - 1-7/16”
LER - Metal Labyrinth
AH - Air Handling
H2S - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** LER seals are made from Aluminum

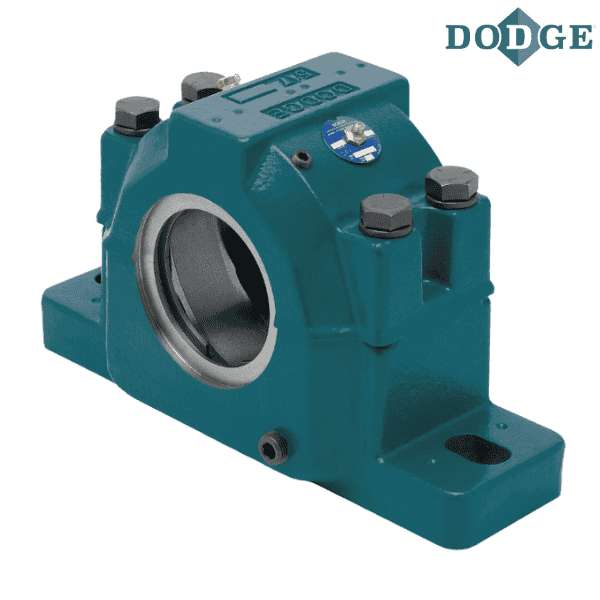

*** Images are for representation purposes only
