Description
Brand - DODGE
Item Number - 035116 DODGE - F4B-BO-103

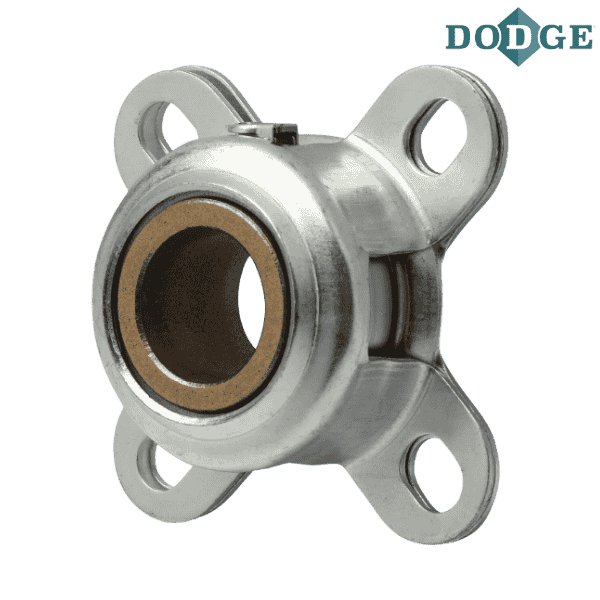

Category - Sleeve Bearings - BRONZOIL 4-Bolt Flange Bearing
Shaft Size (inch) - 1.1875
Description - F4B-BO-103
Weight (lbs) - 1.3

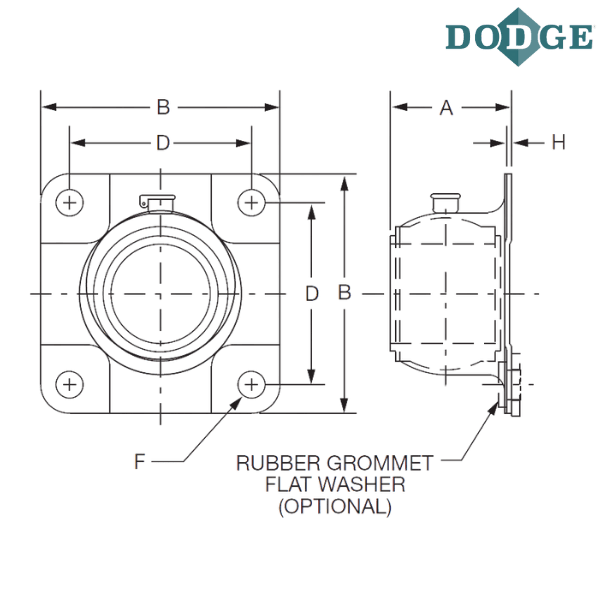

Length Through Bore (A) inch - 1.875
Overall Length (B) inch - 3.625
Bolt Center to Center Length (D) inch - 2.75
F-Bolt Diameter (inch) - 0.375
H (inch) - 0.0625
Notes :
F4B - Flange, 4 Bolt
BO - BRONZOIL
103 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
