035108 DODGE - P2B-BO-104

Brand - DODGE
Item Number - 035108 DODGE - P2B-BO-104
Category - Sleeve Bearings - BRONZOIL Pillow Blocks
Shaft Size (inch) - 1.25
Description - P2B-BO-104
Weight (lbs) - 1.2

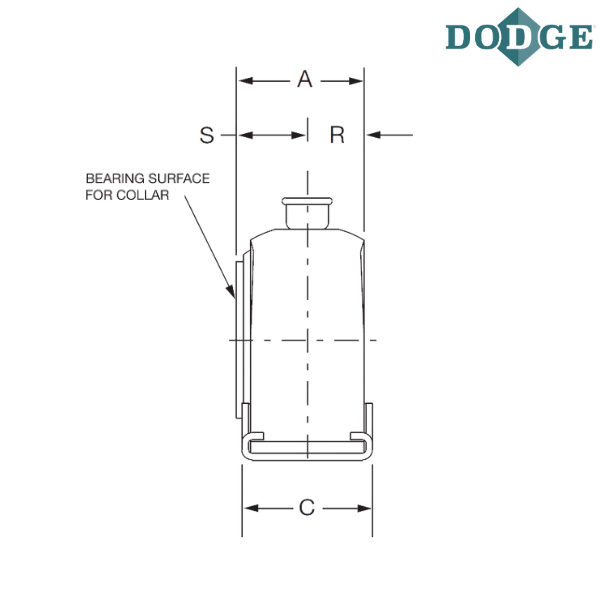

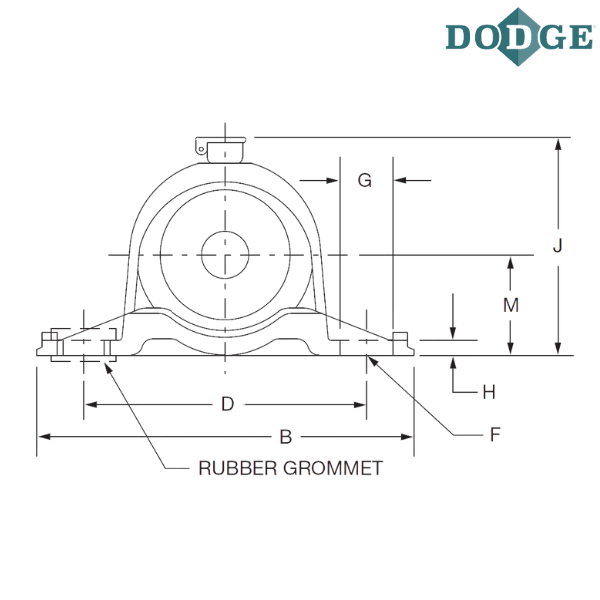

Length Through Bore (A) inch - 1.75
Overall Length (B) inch - 4.5
C (inch) - 1.25
Bolt Center to Center Length (D) inch - 3.5
F-Bolt Diameter (inch) - 0.375
G (inch) - 0.5625
H (inch) - 0.15625
Overall Height (J) inch - 2.8125
Base to Center Height (M) inch - 1.3125
R (inch) - 0.84375
S (inch) - 0.90625

Notes :
P2B - Pillow Block, 2 Bolt Base
BO - BRONZOIL
104 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

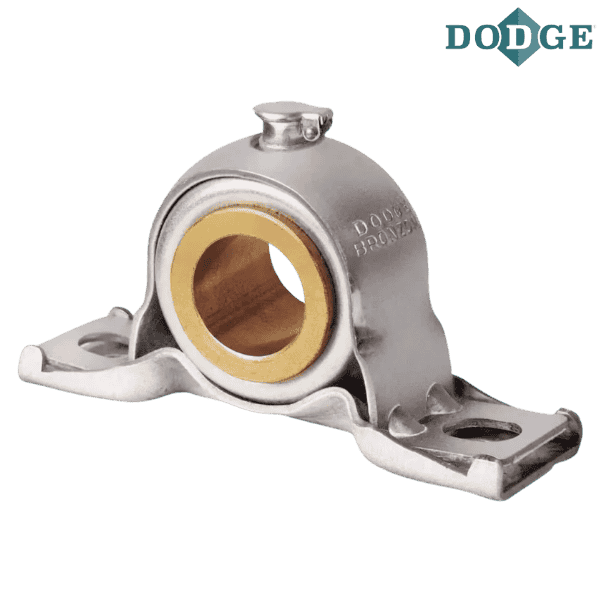

** Images are for representation purposes only
