035029 DODGE - P2B-BO-015

Brand - DODGE
Item Number - 035029 DODGE - P2B-BO-015
Category - Sleeve Bearings - BRONZOIL Pillow Blocks
Shaft Size (inch) - 0.9375
Description - P2B-BO-015
Weight (lbs) - 0.5

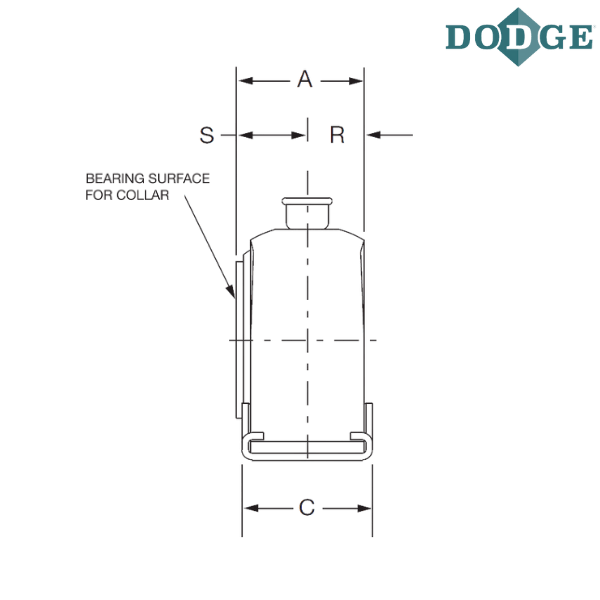

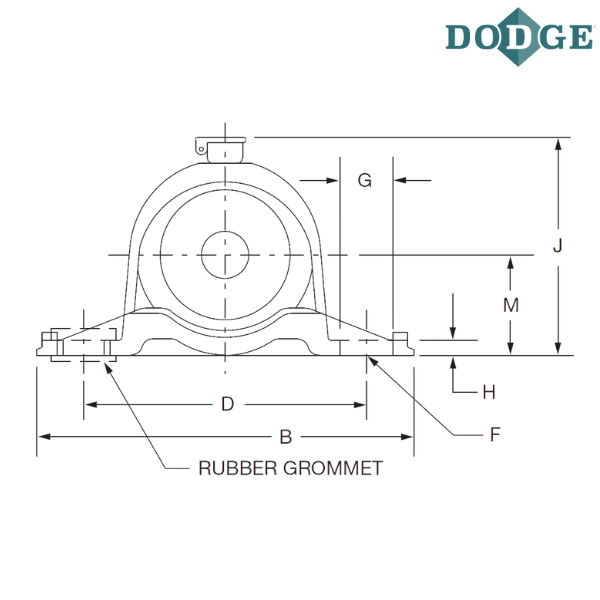

Length Through Bore (A) inch - 1.125
Overall Length (B) inch - 4
C (inch) - 1.1875
Bolt Center to Center Length (D) inch - 3
F-Bolt Diameter (inch) - 0.375
G (inch) - 0.5625
H (inch) - 0.15625
Overall Height (J) inch - 2.3125
Base to Center Height (M) inch - 1.0625
R (inch) - 0.5
S (inch) - 0.625

Notes :
P2B - Pillow Block, 2 Bolt Base
BO - BRONZOIL
015 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

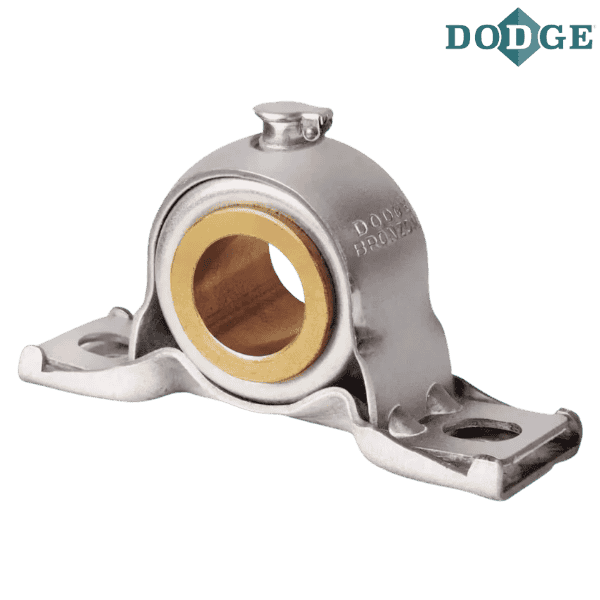

** Images are for representation purposes only
