034775 DODGE - FB-PSEZ-30M-P


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 034775 DODGE - FB-PSEZ-30M-P
Category - E-Z Kleen Mounted Bearings (PSEZ Polymer Sleeve Polymer Housed 3-Bolt Flange Bracket)
Series - 206
Shaft Size (mm) - 30
Description - FB-PSEZ-30M-P
Weight (kg) - 0.38

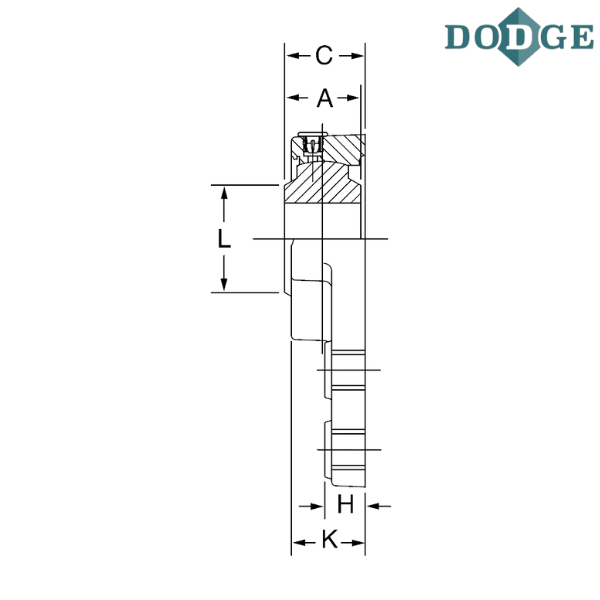

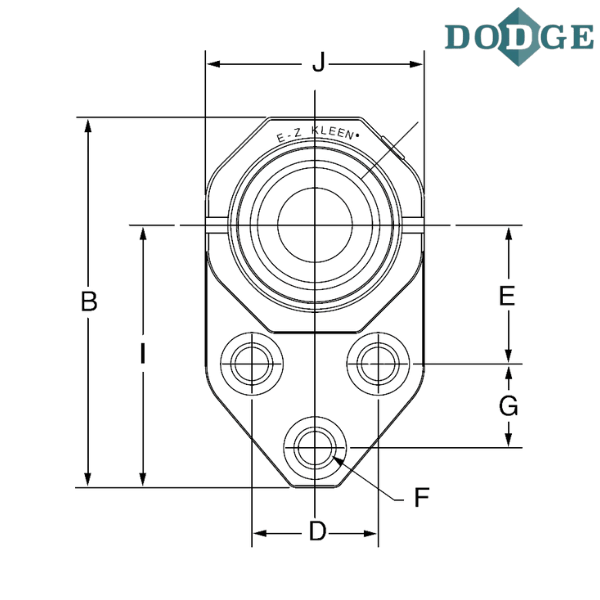

Length Through Bore (A) mm - 30.2
Overall Length (B) mm - 139.2
Thickness (C) mm - 34.1
Bolt Center to Center Length (D) mm - 47.6
E (mm) - 52.4
F-Bolt Diameter - M10
G (mm) - 31.7
H (mm) - 15.5
I (mm) - 98.6
Overall Width (J) mm - 81.3
K (mm) - 31.8
L (mm) - 42.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FB - Flanged bracket
PS - Polymer Sleeve Insert
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
P - Polymer housing

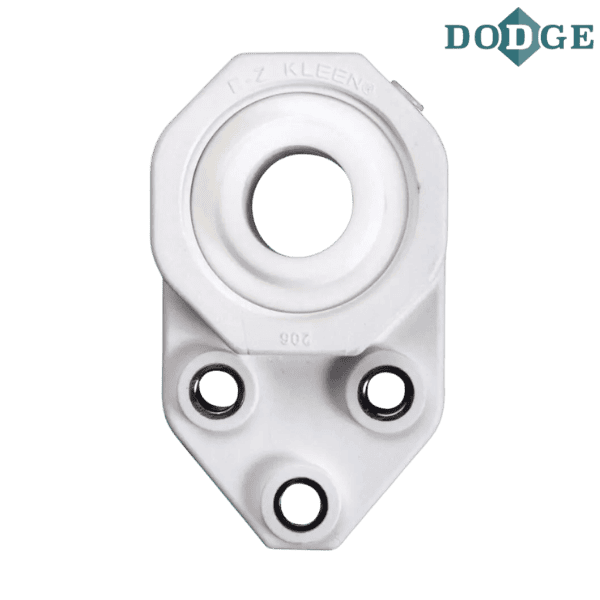

** Images are for representation purposes only
