034772 DODGE - F2B-PSEZ-50M-P


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 034772 DODGE - F28-PSEZ-50M-P

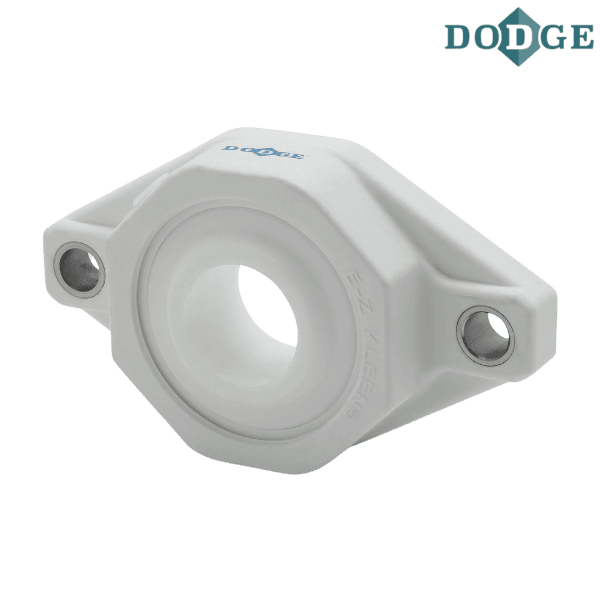

Category - E-Z Kleen Mounted Bearings (PSEZ Polymer Sleeve Polymer Housed 2-Bolt Flange Bearings)
Series - 210
Shaft Size (mm) - 50
Description - F28-PSEZ-50M-P
Weight (kg) - 0.52

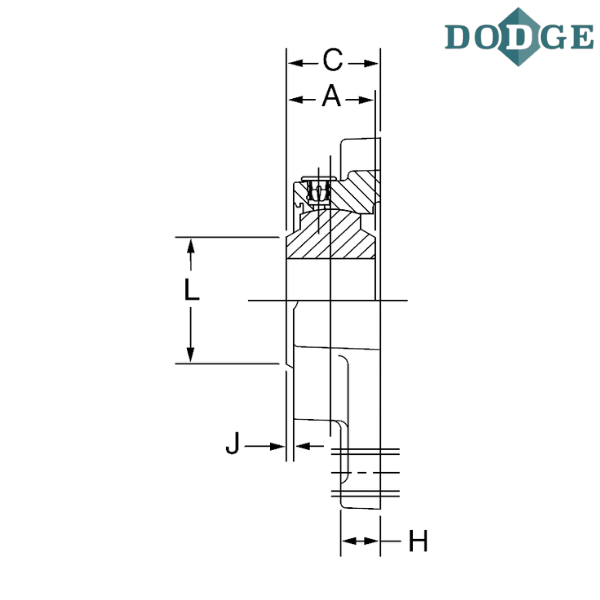

Length Through Bore (A) mm - 41.3
Overall Length (B) mm - 19.1
Thickness (C) mm - 46.5

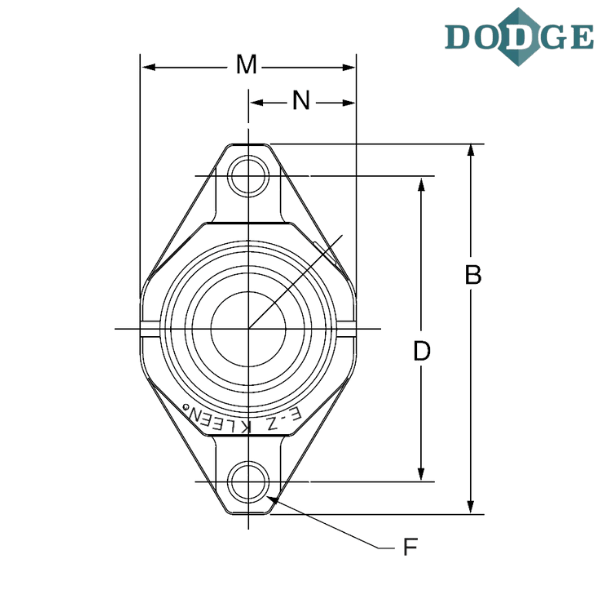

Bolt Center to Center Length (D) mm - 157
F-Bolt Diameter - M16
H (mm) - 19.4
J (mm) - 6.2
L (mm) - 65.1
Overall Width (M) mm - 114.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2-bolt flange
PS - Polymer Sleeve Insert
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
P - Polymer housing

** Images are for representation purposes only
