034770 DODGE - F2B-PSEZ-40M-P


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 034770 DODGE - F2B-PSEZ-40M-P
Category - E-Z Kleen Mounted Bearings (PSEZ Polymer Sleeve Polymer Housed 2-Bolt Flange Bearings)
Series - 208
Shaft Size (mm) - 40
Description - F2B-PSEZ-40M-P
Weight (kg) - 0.46

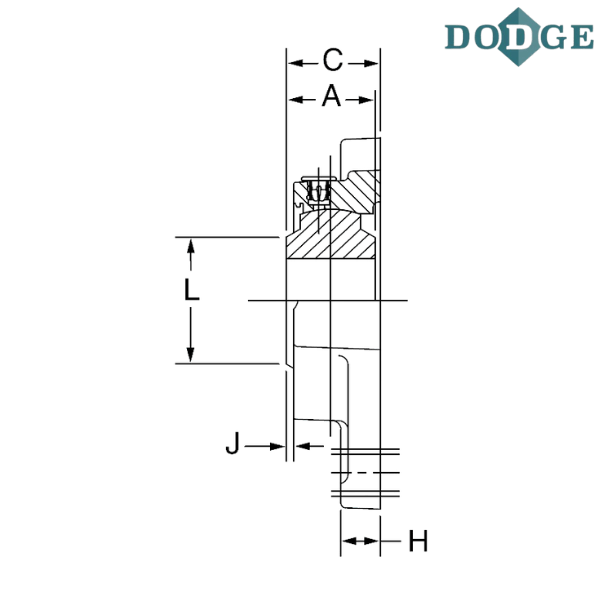

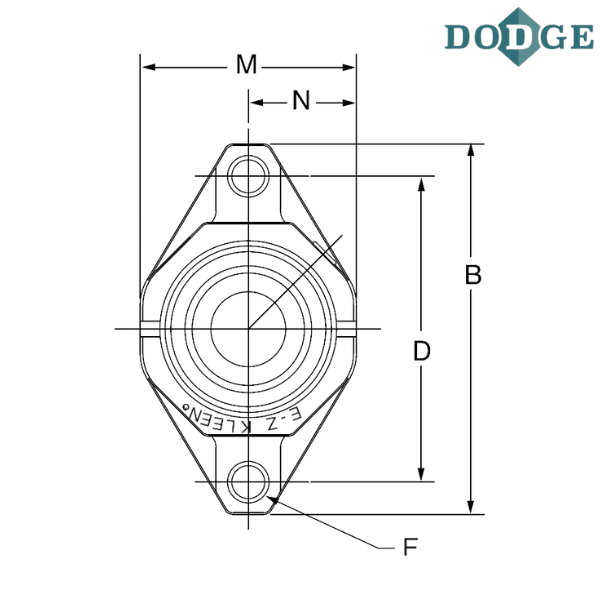

Length Through Bore (A) mm - 38.1
Overall Length (B) mm - 172
Thickness (C) mm - 41.4
Bolt Center to Center Length (D) mm - 143.5
F-Bolt Diameter - M12
H (mm) - 17.1
J (mm) - 4.6
L (mm) - 50.8
Overall Width (M) mm - 103.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2-bolt flange
PS - Polymer Sleeve Insert
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
P - Polymer housing

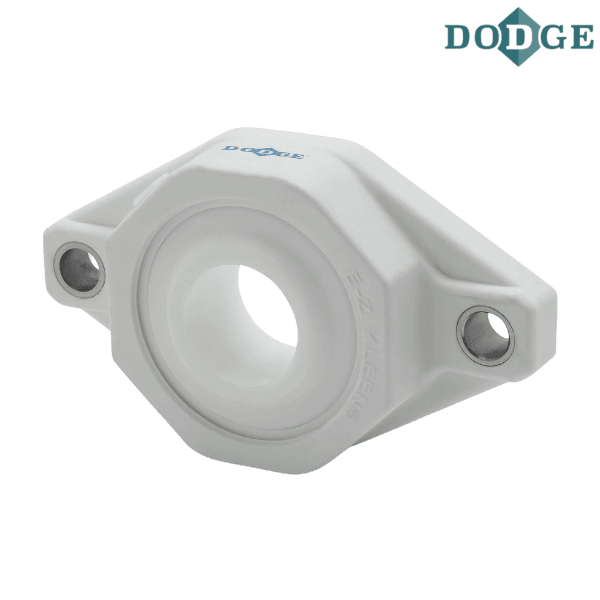

** Images are for representation purposes only
