Description
Brand - DODGE

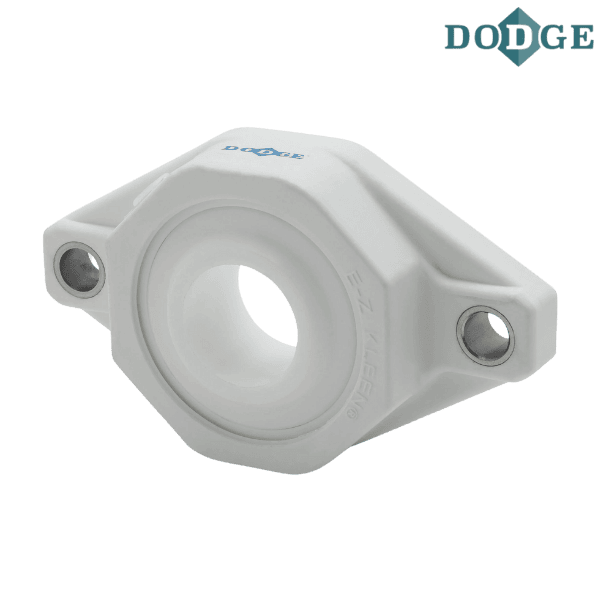

Item Number - 034768 DODGE - F2B-PSEZ-30M-P
Category - E-Z Kleen Mounted Bearings (PSEZ Polymer Sleeve Polymer Housed 2-Bolt Flange Bearings)
Series - 206
Shaft Size (mm) - 30
Description - F2B-PSEZ-30M-P
Weight (kg) - 0.28

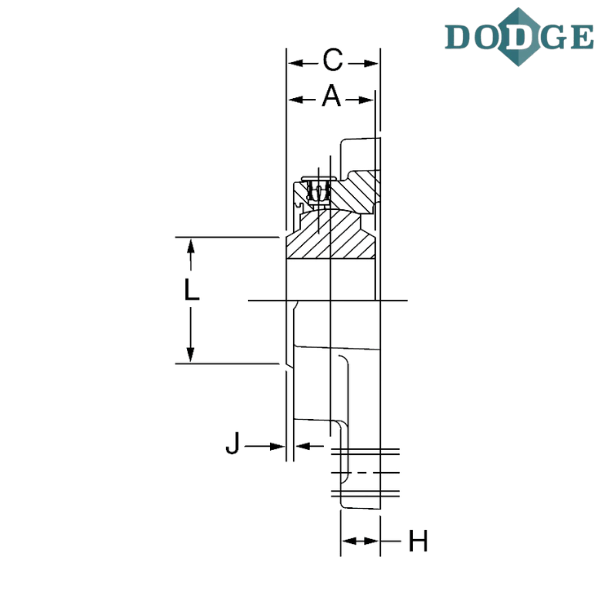

Length Through Bore (A) mm - 30.2

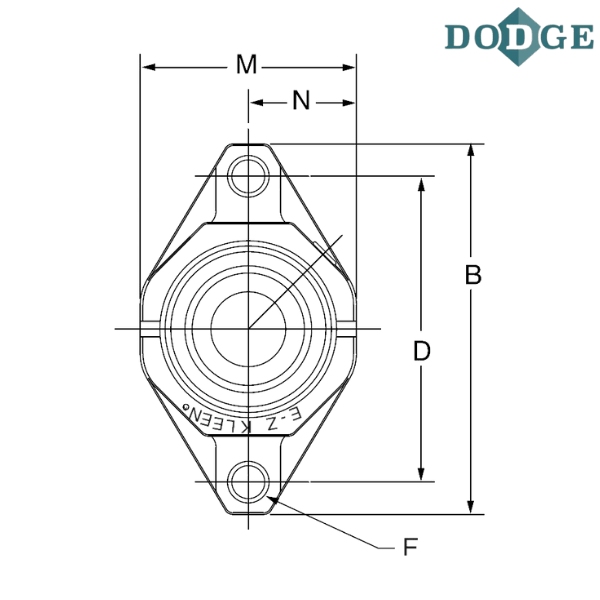

Overall Length (B) mm - 142.1
Thickness (C) mm - 34.1
Bolt Center to Center Length (D) mm - 116.5
F-Bolt Diameter - M10
H (mm) - 13.9
J (mm) - 2.6
L (mm) - 42.9
Overall Width (M) mm - 81.4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2-bolt flange
PS - Polymer Sleeve Insert
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
P - Polymer housing
** Images are for representation purposes only
