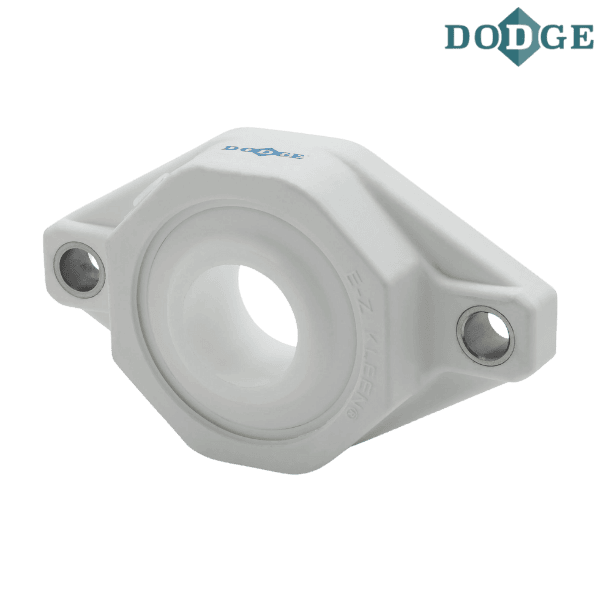

034767 DODGE - F2B-PSEZ-25M-P


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 034767 DODGE - F2B-PSEZ-25M-P
Category - E-Z Kleen Mounted Bearings (PSEZ Polymer Sleeve Polymer Housed 2-Bolt Flange Bearings)
Series - 205
Shaft Size (mm) - 25
Description - F2B-PSEZ-25M-P
Weight (kg) - 0.21

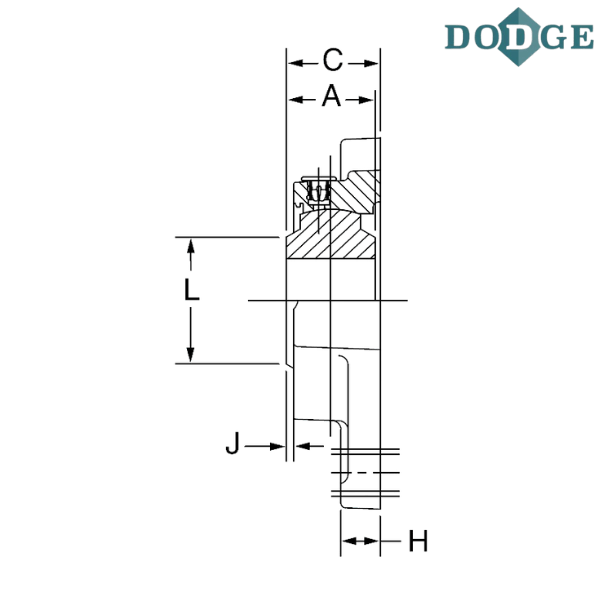

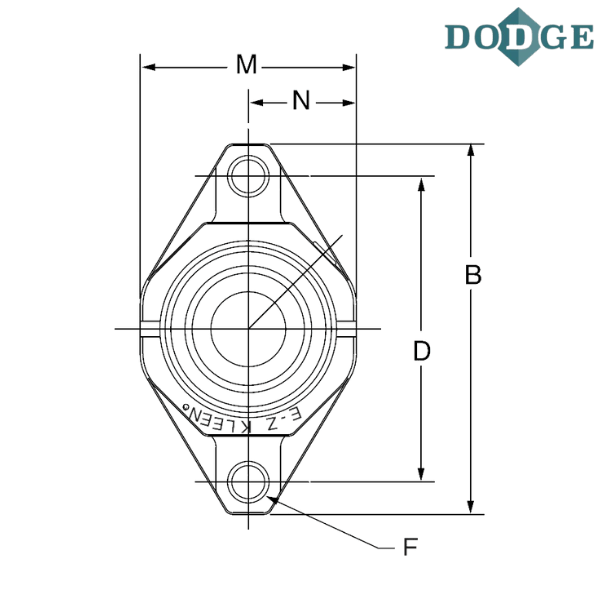

Length Through Bore (A) mm - 27
Overall Length (B) mm - 125
Thickness (C) mm - 31.5
Bolt Center to Center Length (D) mm - 99
F-Bolt Diameter - M10
H (mm) - 13.9
J (mm) - 2.6
L (mm) - 36.5
Overall Width (M) mm - 69.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2-bolt flange
PS - Polymer Sleeve Insert
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
P - Polymer housing

** Images are for representation purposes only
