Description
Brand - DODGE

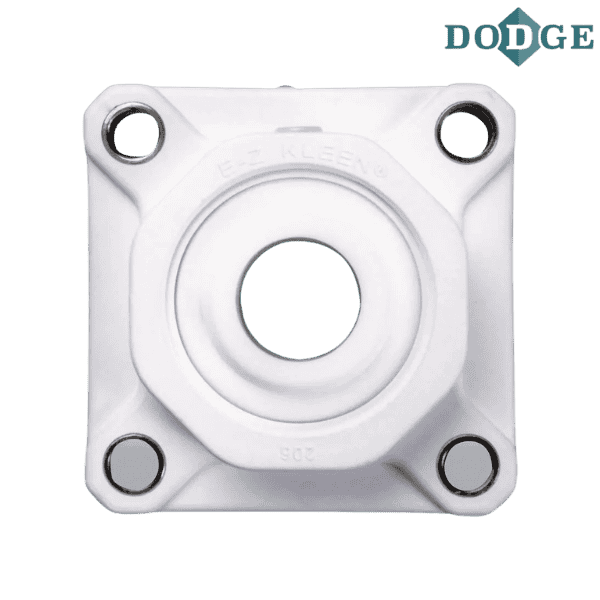

Item Number - 034761 DODGE - F4B-PSEZ-30M-P
Category - E-Z Kleen Mounted Bearings (PSEZ Polymer Sleeve Polymer Housed 4-Bolt Flange Bearings)
Series - 206
Shaft Size (mm) - 30
Description - F4B-PSEZ-30M-P
Weight (kg) - 0.4

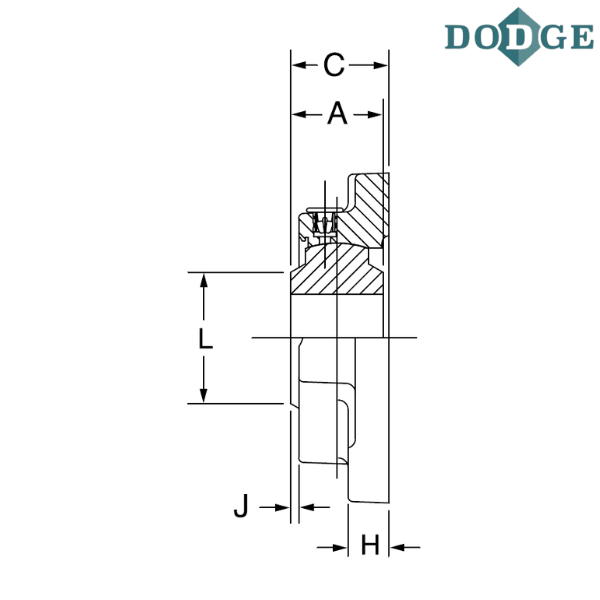

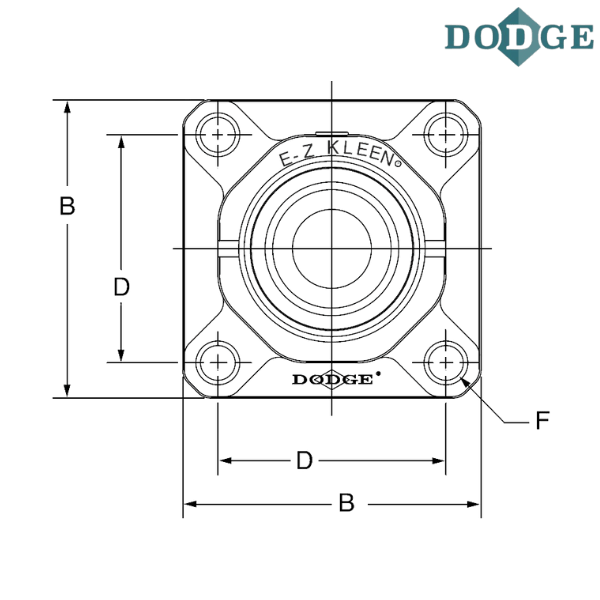

Length Through Bore (A) mm - 30.2
Overall Length (B) mm - 108
Thickness (C) mm - 34.9
Bolt Center to Center Length (D) mm - 82.5
F-Bolt Diameter - M10
H (mm) - 15.5
J (mm) - 2.6
L (mm) - 42.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4-bolt flange
PS - Polymer Sleeve Insert
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
P - Polymer housing
** Images are for representation purposes only
