Description
Brand - DODGE

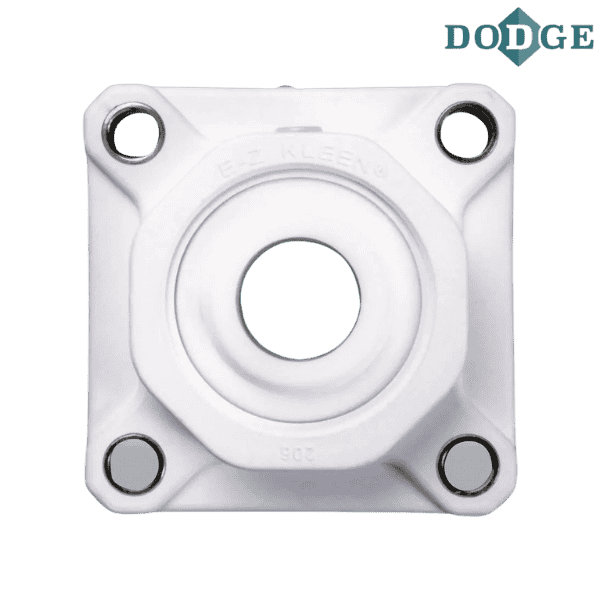

Item Number - 034760 DODGE - F4B-PSEZ-25M-P
Category - E-Z Kleen Mounted Bearings (PSEZ Polymer Sleeve Polymer Housed 4-Bolt Flange Bearings)
Series - 205
Shaft Size (mm) - 25
Description - F4B-PSEZ-25M-P
Weight (kg) - 0.25

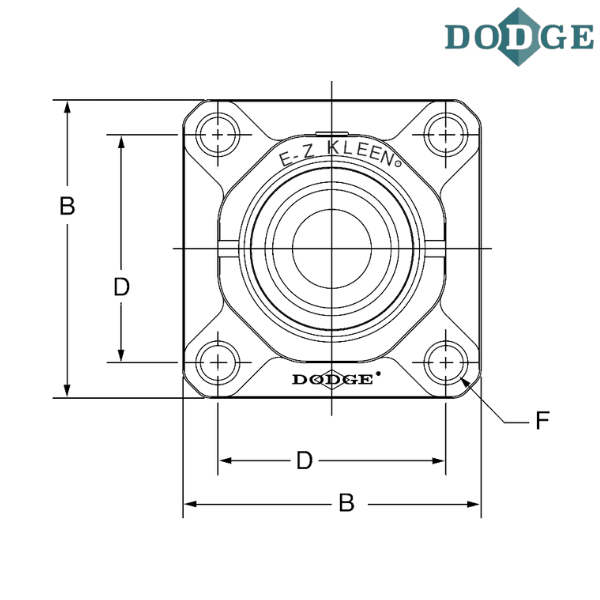

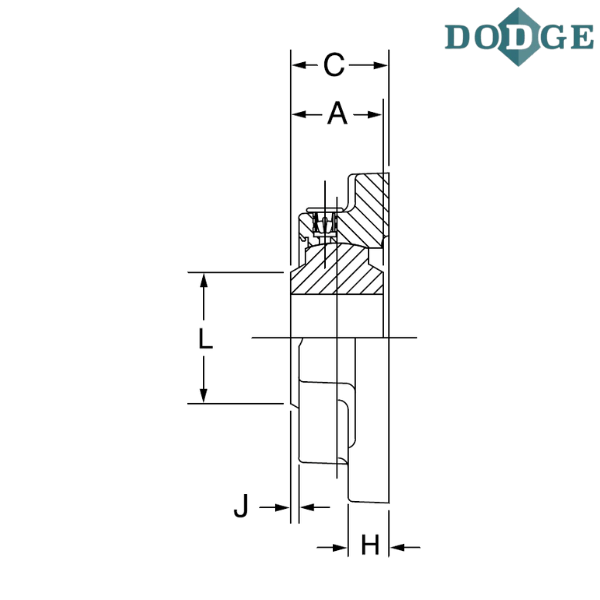

Length Through Bore (A) mm - 27
Overall Length (B) mm - 95.3
Thickness (C) mm - 32.3
Bolt Center to Center Length (D) mm - 70
F-Bolt Diameter - M10
H (mm) - 13.9
J (mm) - 2.6
L (mm) - 36.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4-bolt flange
PS - Polymer Sleeve Insert
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
P - Polymer housing
** Images are for representation purposes only
