Description
Brand - DODGE
Item Number - 034759 DODGE - F4B-PSEZ-20M-P
Category - E-Z Kleen Mounted Bearings (PSEZ Polymer Sleeve Polymer Housed 4-Bolt Flange Bearings)
Series - 204
Shaft Size (mm) - 20
Description - F4B-PSEZ-20M-P
Weight (kg) - 0.22

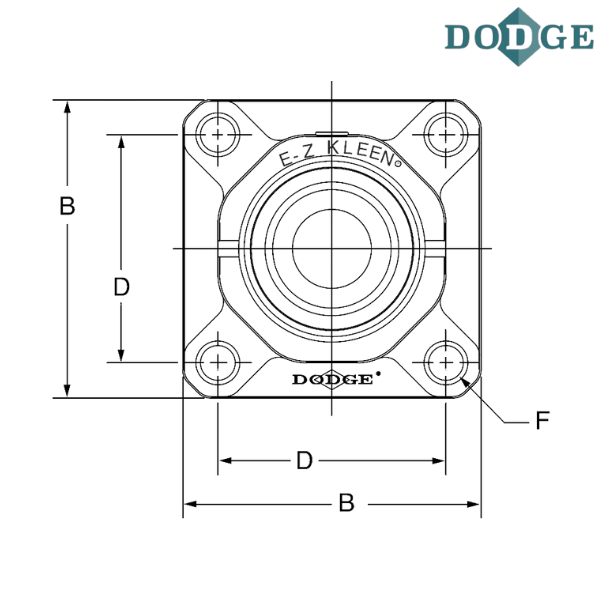

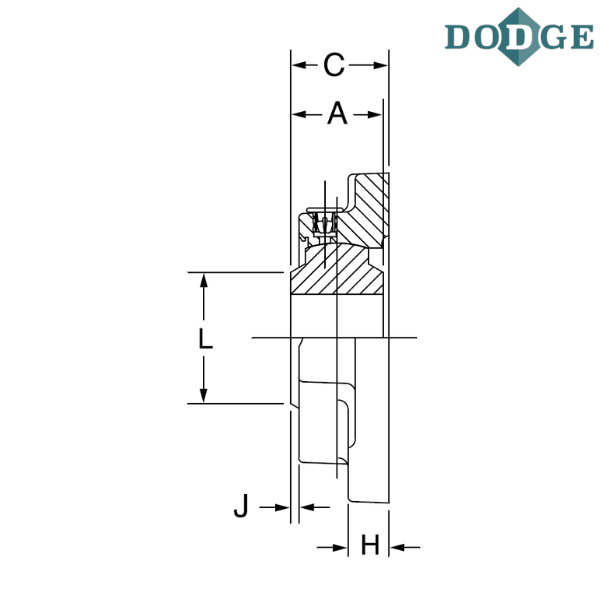

Length Through Bore (A) mm - 25.4
Overall Length (B) mm - 85.9
Thickness (C) mm - 31.1
Bolt Center to Center Length (D) mm - 63.5
F-Bolt Diameter - M10
H (mm) - 13.5
J (mm) - 1.9
L (mm) - 33.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4-bolt flange
PS - Polymer Sleeve Insert
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
P - Polymer housing

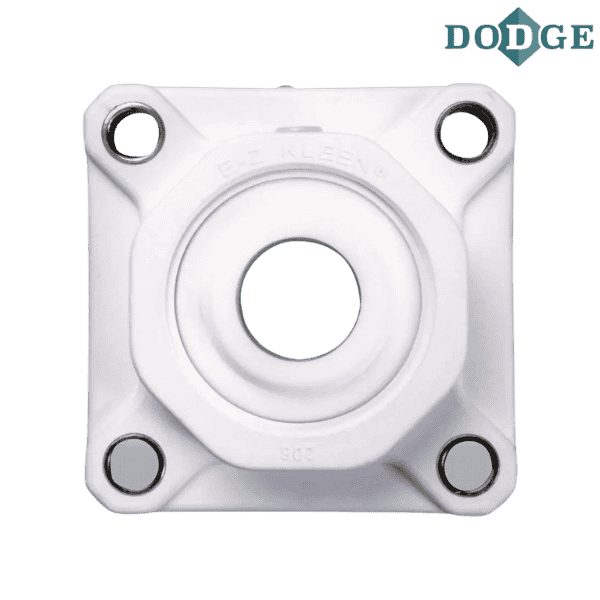

** Images are for representation purposes only
