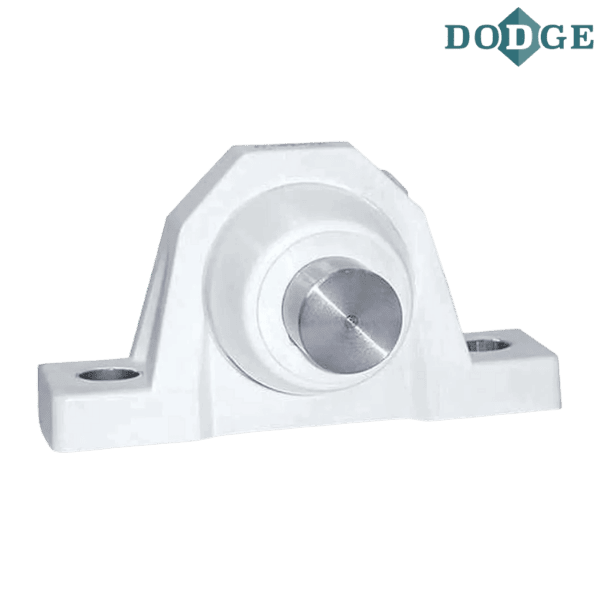

034752 DODGE - P2B-PSBEZ-40M-P

Brand - DODGE
Item Number - 034752 DODGE - P2B-PSBEZ-40M-P
Category - E-Z Kleen Mounted Bearings (PSEZ Polymer Sleeve, Polymer Housed Pillow Blocks)
Series - 208 (PSB)
Shaft Size (mm) - 40
Description - P2B-PSBEZ-40M-P
Weight (kg) - 0.58

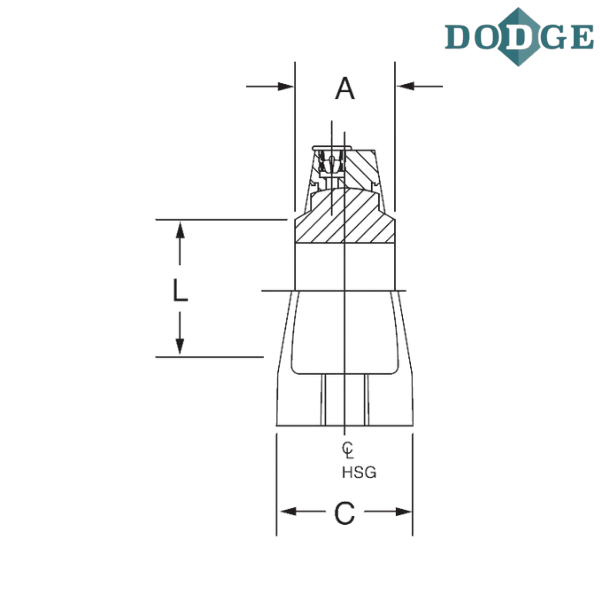

Length Through Bore (A) mm - 38.1

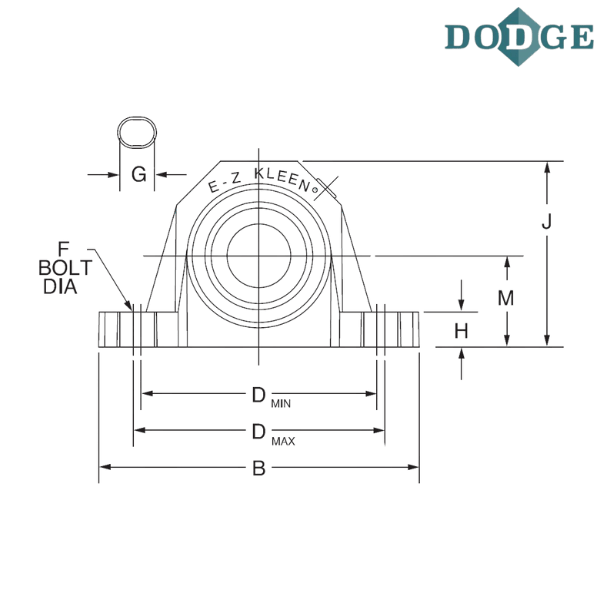

Overall Length (B) mm - 183
Overall Width (C) mm - 53.6
Bolt to Bolt Minimum Distance (D min) mm - 129.6
Bolt to Bolt Maximum Distance (D max) mm - 143.3
F-Bolt Diameter - M12
G (mm) - 22.2
H (mm) - 19.4
Overall Height (J) mm - 106
L (mm) - 50.8
Base to Center Height (M) mm - 49.2
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2-bolt base
PS - Polymer Sleeve Insert
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
P - Polymer housing

** Images are for representation purposes only
