Description
Brand - DODGE
Item Number - 034717 DODGE - F4B-PSEZ-100-P

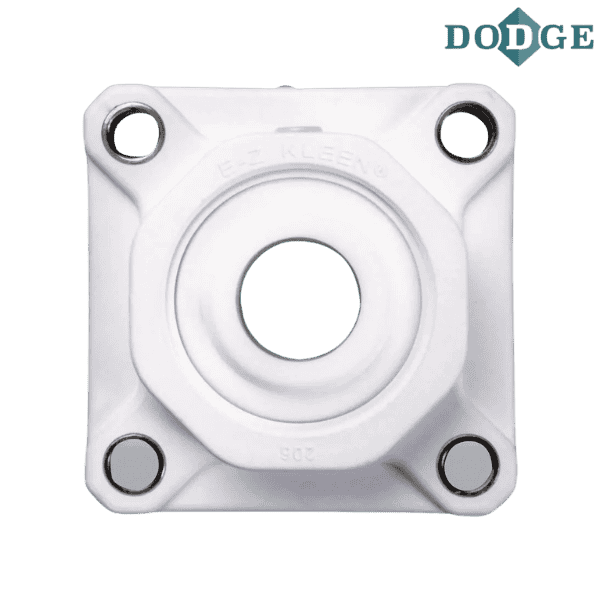

Category - E-Z Kleen Mounted Bearings (PSEZ Polymer Sleeve Polymer Housed 4-Bolt Flange Bearings)
Series - 205
Shaft Size (inch) - 1
Description - F4B-PSEZ-100-P
Weight (lbs) - 0.55

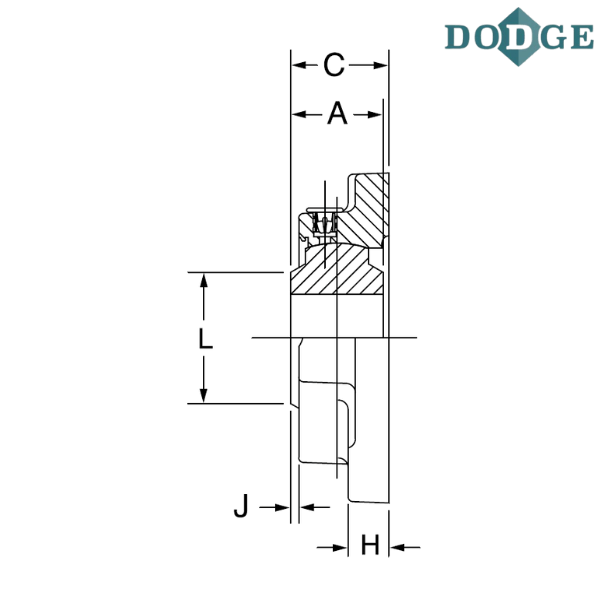

Length Through Bore (A) inch - 1.0625

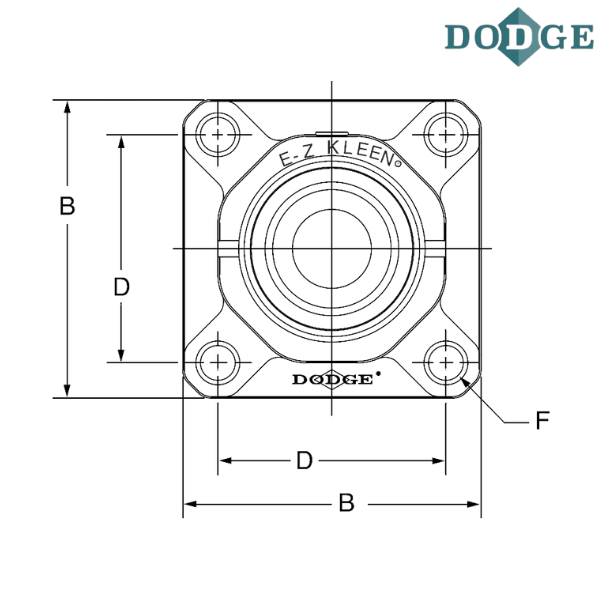

Overall Length (B) inch - 3.75
Thickness (C) inch - 1.265625
Bolt Center to Center Length (D) inch - 2.75
F-Bolt Diameter (inch) - 0.375
H (inch) - 0.546875
J (inch) - 0.125
L (inch) - 1.4375
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4-bolt flange
PS - Polymer Sleeve Insert
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
P - Polymer housing
** Images are for representation purposes only
