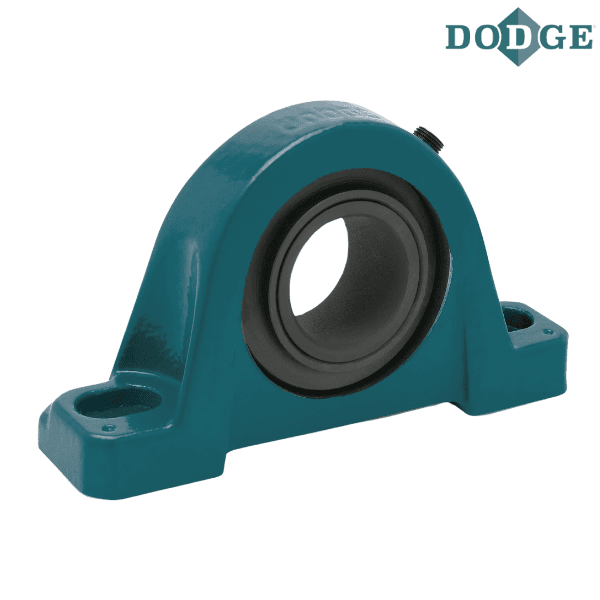

034596 DODGE - P2B-LTB7-215

Brand - DODGE
Item Number - 034596 DODGE - P2B-LTB7-215
Category - Sleeve Bearings - SOLIDLUBE (700 Series)
Series - 215
Shaft Size (inch) - 2.9375
Description - P2B-LTB7-215
Weight (lbs) - 18.7
Used on Frame - LD-45

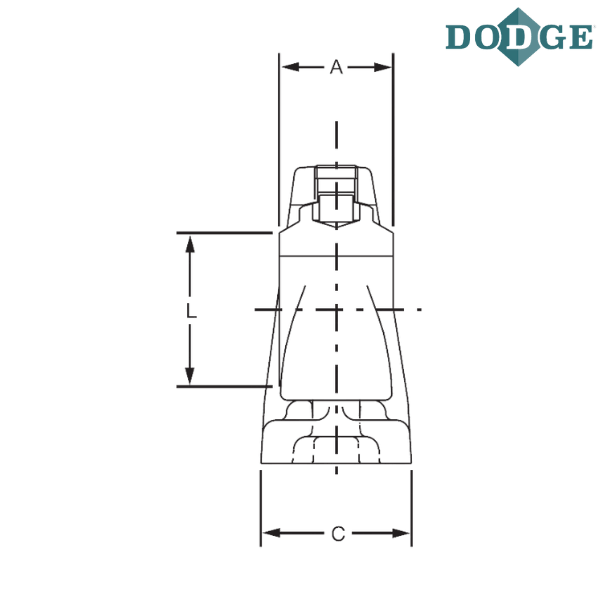

Length Through Bore (A) inch - 2.71875

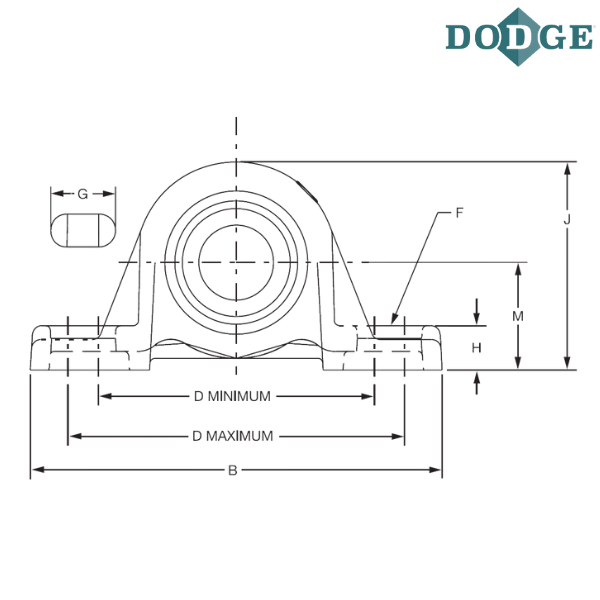

Overall Length (B) inch - 11.75
Width (C) inch - 2.875
Bolt to Bolt Minimum Distance (D min) inch - 8.5
Bolt to Bolt Maximum Distance (D max) inch - 9.5
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.4375
H (inch) - 1.0625
Overall Height (J) inch - 6.5625
L (inch) - 3.9375
Base to Center Height (M) inch - 3.3125

Notes :
P2B - Pillow Block, 2 Bolt Base
LTB7 - SOLIDLUBE Lower Backing Height On Pillow Blocks For LT700 Series
215 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
