Description
Brand - DODGE

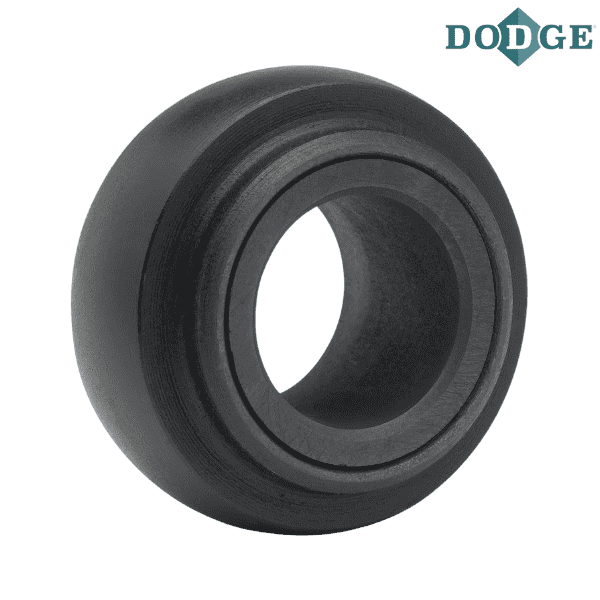

Item Number - 034471 DODGE - INS-LT10-70M
Category - Sleeve Bearings - SOLIDLUBE LT Inserts (1000 Series)
Series - 215
Shaft Size (mm) - 70
LT1000 Series Description - INS-LT10-70M
Weight (kg) - 2.5

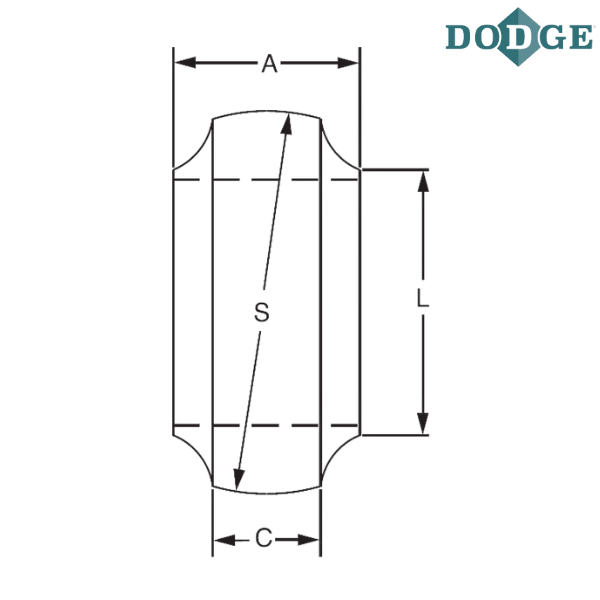

A (mm) - 69.1
C (mm) - 30.2
L (mm) - 100
S (mm) - 129.883 / 129.832
Notes :
INS - Insert
LT10 - SOLIDLUBE LT 1000 Series
70M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension
** Images are for representation purposes only
