Description
Brand - DODGE
Item Number - 034467 DODGE - INS-LT10-50M
Category - Sleeve Bearings - SOLIDLUBE LT Inserts (1000 Series)
Series - 210
Shaft Size (mm) - 50
LT1000 Series Description - INS-LT10-50M
Weight (kg) - 0.73

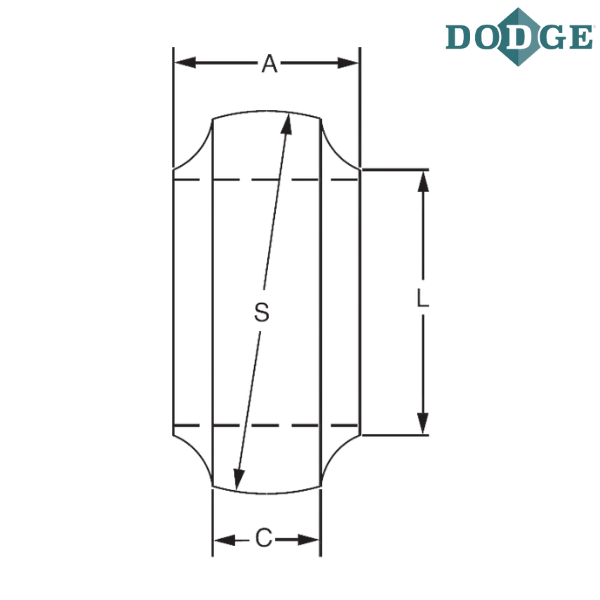

A (mm) - 41.3
C (mm) - 22.2
L (mm) - 71.4
S (mm) - 89.853 / 89.802
Notes :
INS - Insert
LT10 - SOLIDLUBE LT 1000 Series
50M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension

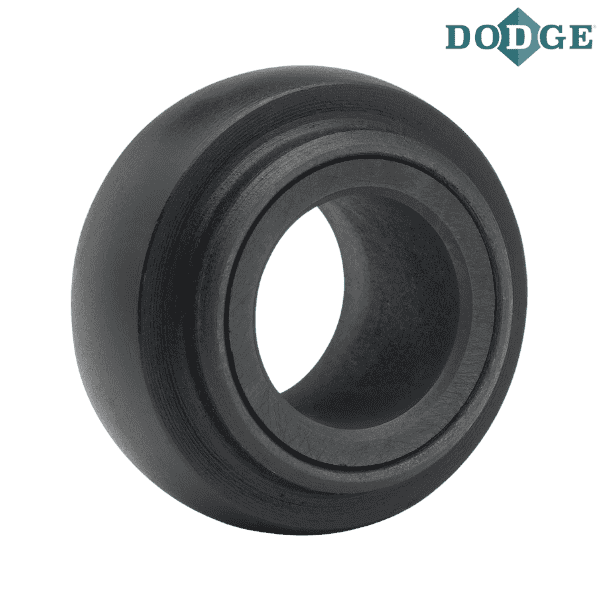

** Images are for representation purposes only
