Description
Brand - DODGE
Item Number - 034461 DODGE - INS-LT10-35M
Category - Sleeve Bearings - SOLIDLUBE LT Inserts (1000 Series)
Series - 207
Shaft Size (mm) - 35
LT1000 Series Description - INS-LT10-35M
Weight (kg) - 0.45

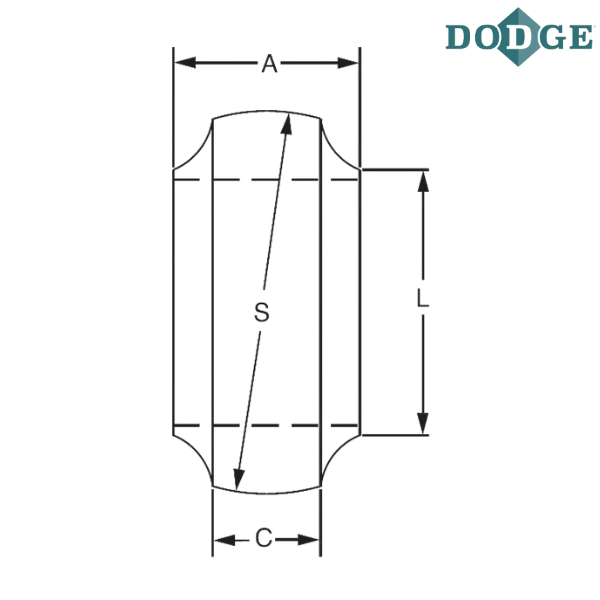

A (mm) - 33.3
C (mm) - 20.6
L (mm) - 54
S (mm) - 71.857 / 71.806
Notes :
INS - Insert
LT10 - SOLIDLUBE LT 1000 Series
35M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension

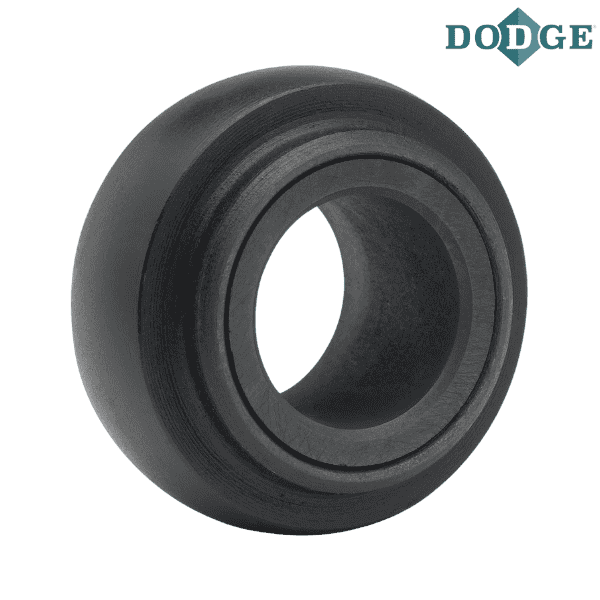

** Images are for representation purposes only
