Description
Brand - DODGE
Item Number - 034458 DODGE - INS-LT7-30M
Category - Sleeve Bearings - SOLIDLUBE LT Inserts (700 Series)
Series - 206
Shaft Size (mm) - 30
LT700 Series Description - INS-LT7-30M
Weight (kg) - 0.32

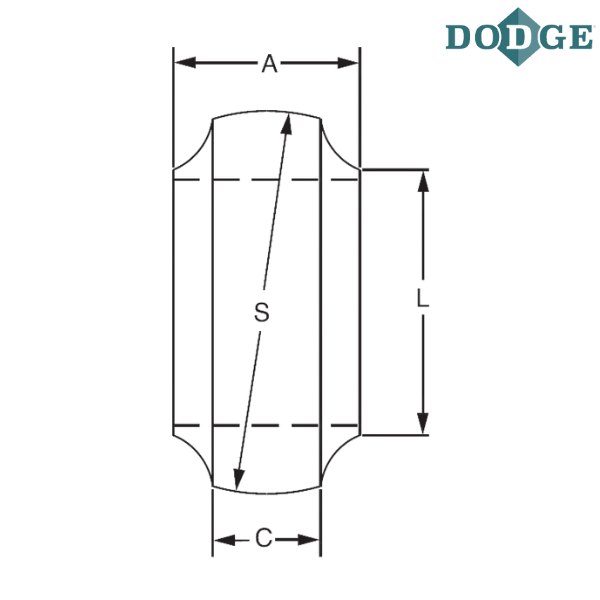

A (mm) - 30.2
C (mm) - 17.5
L (mm) - 46
S (mm) - 61.849 / 61.798
Notes :
INS - Insert
LT7 - SOLIDLUBE LT700 Series
30M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension

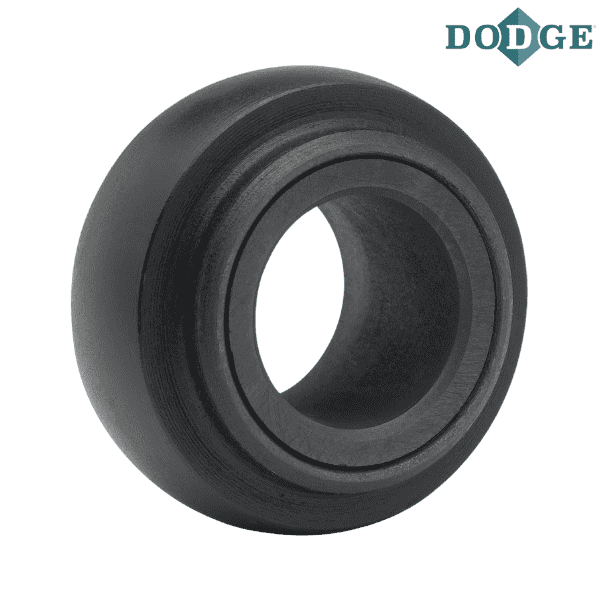

** Images are for representation purposes only
