Description
Brand - DODGE
Item Number - 034444 DODGE - INS-MM7-400
Category - Sleeve Bearings - SOLIDLUBE MM Bearing Inserts (700 Series)
Shaft Size (inch) - 4
Description - INS-MM7-400
Weight (lbs) - 9.8

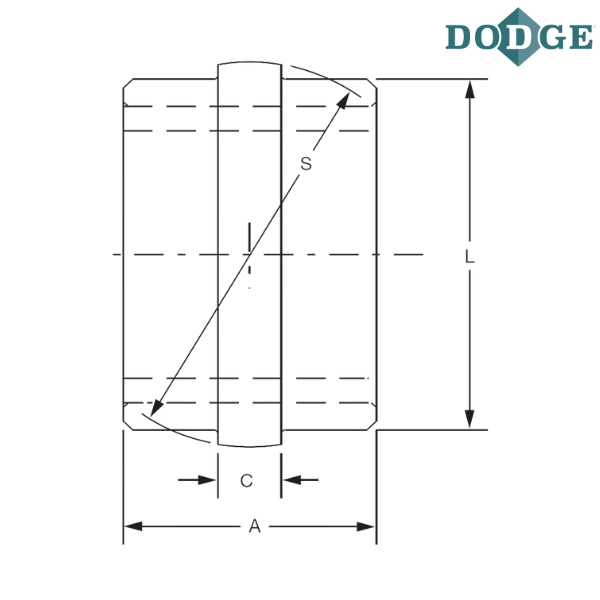

A (inch) - 4
C (inch) - 1.125
L (inch) - 5.625
Spherical Diameter (S) inch - 6.057/6.055
Notes :
INS - Insert
MM7 - SOLIDLUBE MM700 Series
400 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

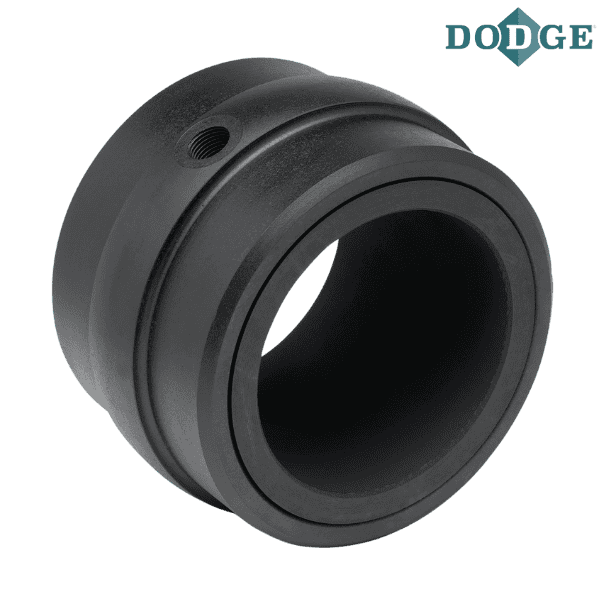

** Images are for representation purposes only
