Description
Brand - DODGE

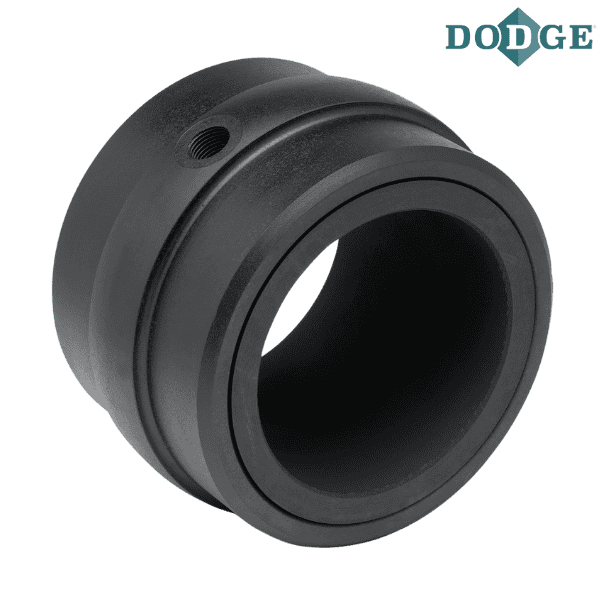

Item Number - 034442 DODGE - INS-MM7-315
Category - Sleeve Bearings - SOLIDLUBE MM Bearing Inserts (700 Series)
Shaft Size (inch) - 3.9375
Description - INS-MM7-315
Weight (lbs) - 10

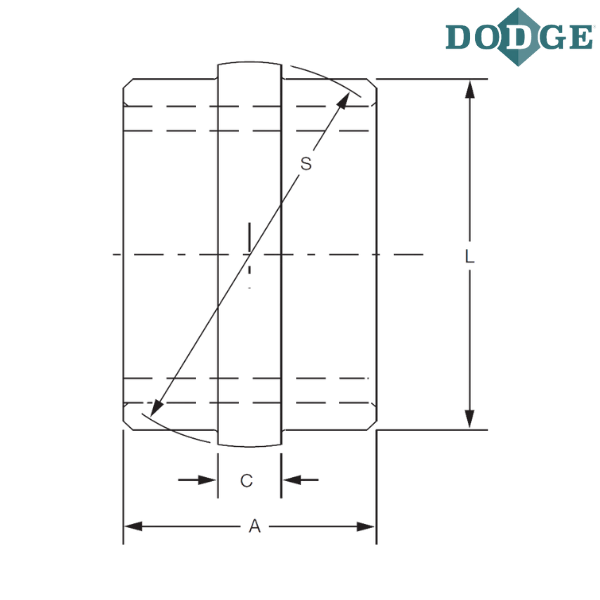

A (inch) - 4
C (inch) - 1.125
L (inch) - 5.625
Spherical Diameter (S) inch - 6.057/6.055
Notes :
INS - Insert
MM7 - SOLIDLUBE MM700 Series
315 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
