Description
Brand - DODGE

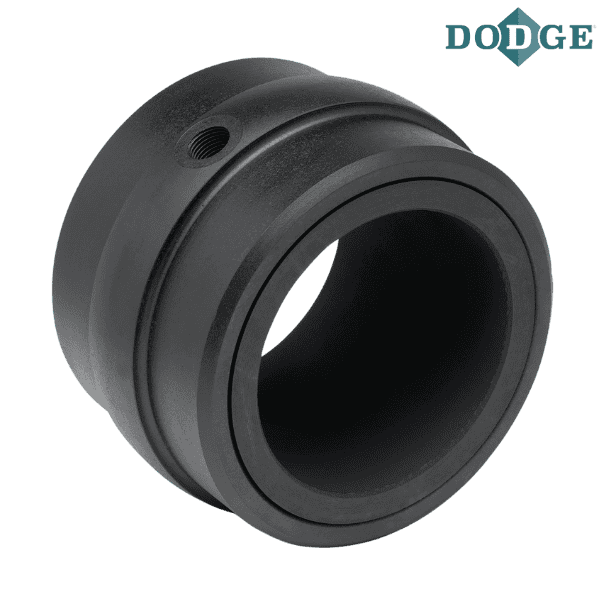

Item Number - 034441 DODGE - INS-MM10-308
Category - Sleeve Bearings - SOLIDLUBE MM Bearing Inserts (1000 Series)
Shaft Size (inch) - 3.5
Description - INS-MM10-308
Weight (lbs) - 6.2

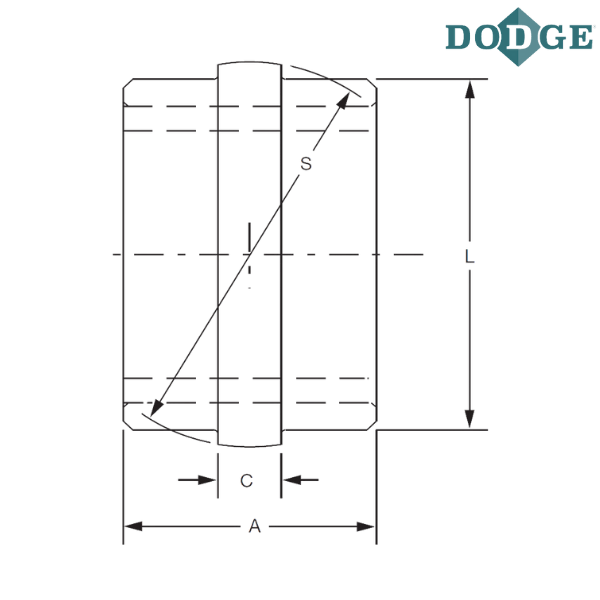

A (inch) - 3.5
C (inch) - 0.875
L (inch) - 4.875
Spherical Diameter (S) inch - 5.182/5.180
Notes :
INS - Insert
MM10 - SOLIDLUBE MM1000 Series
308 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
