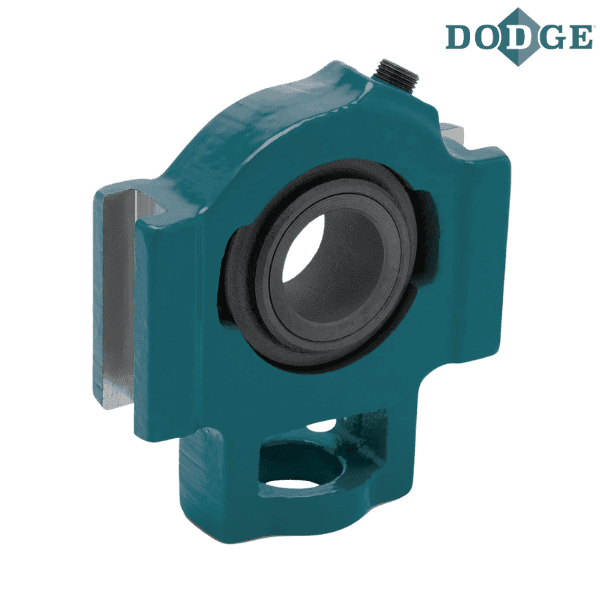

034320 DODGE - WSTU-LT7-60M

Brand - DODGE
Item Number - 034320 DODGE - WSTU-LT7-60M
Category - Sleeve Bearings - SOLIDLUBE LT Wide Slot Take-Up Bearings (LT700)
Series - 212
Shaft Size (mm) - 60
Description - WSTU-LT7-60M
Weight (kg) - 4.58
Used on Frame - WS-502

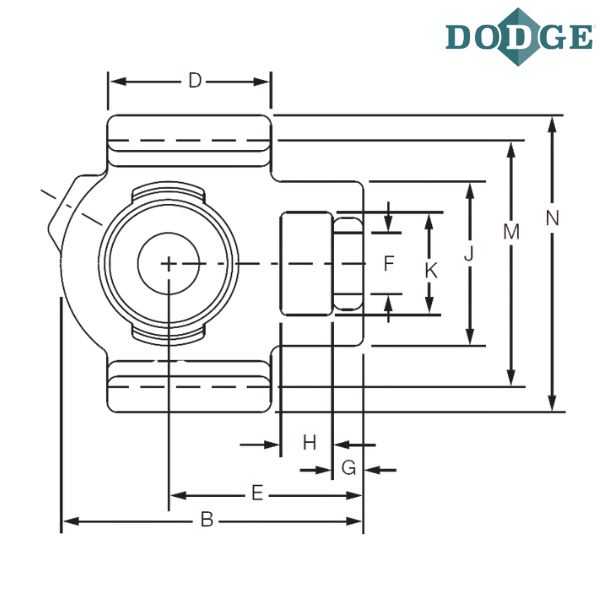

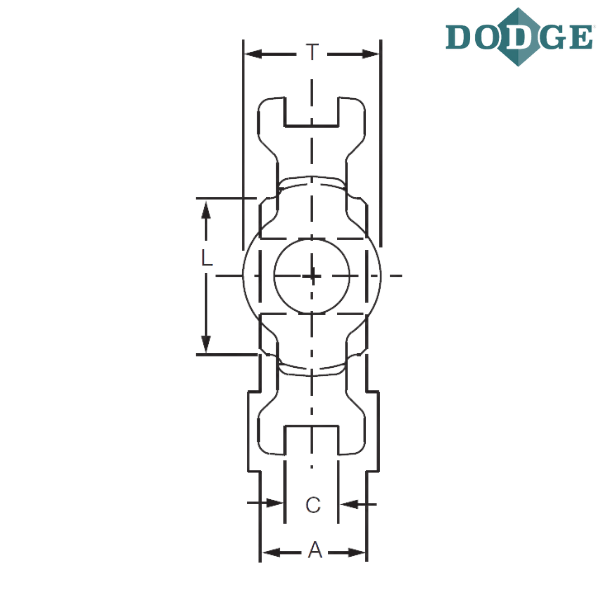

Length Through Bore (A) mm - 46
Overall Length (B) mm - 190.5
C (mm) - 27
D (mm) - 101.6
E (mm) - 119.1
F-Bolt Diameter (inch) - 1.375
G (mm) - 19.1
H (mm) - 31.8
J (mm) - 101.6
K (mm) - 63.5
L (mm) - 88.9
M (mm) - 130.2
Overall Width (N) mm - 149.2
Thickness (T) mm - 63.5

Notes :
WSTU - Wide Slot Take-Up
LT7 - SOLIDLUBE LT700 Series
60M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension

** Images are for representation purposes only
