034317 DODGE - WSTU-LT7-40M

Brand - DODGE
Item Number - 034317 DODGE - WSTU-LT7-40M
Category - Sleeve Bearings - SOLIDLUBE LT Wide Slot Take-Up Bearings (LT700)
Series - 209
Shaft Size (mm) - 40
Description - WSTU-LT7-40M
Weight (kg) - 2.77
Used on Frame - WS-400

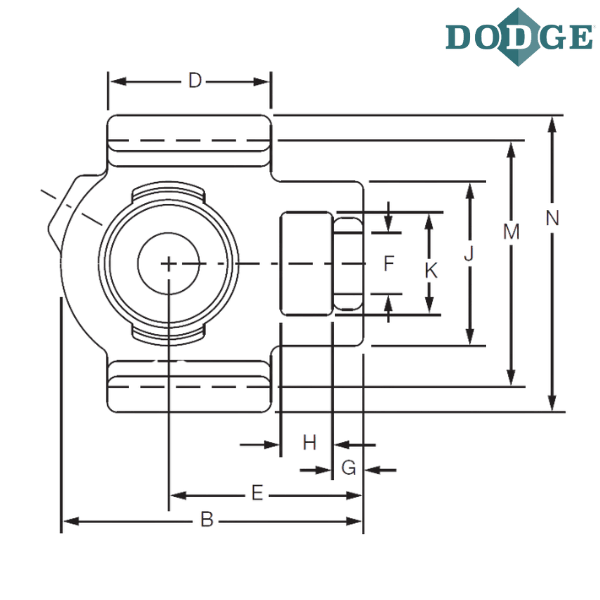

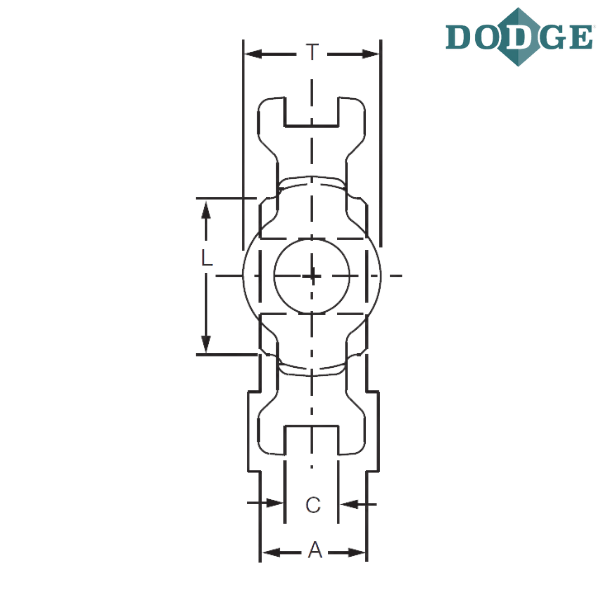

Length Through Bore (A) mm - 39.7
Overall Length (B) mm - 142.9
C (mm) - 17.5
D (mm) - 82.6
E (mm) - 87.3
F-Bolt Diameter (inch) - 1.125
G (mm) - 15.9
H (mm) - 19.1
J (mm) - 82.6
K (mm) - 49.2
L (mm) - 65.1
M (mm) - 101.6
Overall Width (N) mm - 120.7
Thickness (T) mm - 49.2

Notes :
WSTU - Wide Slot Take-Up
LT7 - SOLIDLUBE LT700 Series
40M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension

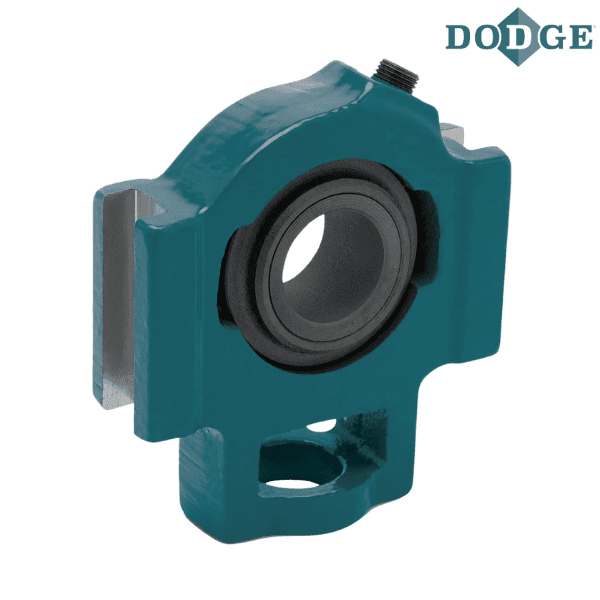

** Images are for representation purposes only
